Silicon Steels is a leading company that manufactures Inconel 800 Round Bar, a wide range of superior quality. Our Incoloy 800 hex bars and Incoloy 800 flat bars are safe against corrosion caused by harmful acids. Our Incoloy 800 threaded bars in heat exchangers and pressure vessels are used for their esteemed properties. In the heat treating equipment, chemical and petrochemical manufacturing sectors, our Incoloy 800 threaded bars are also used. Incoloy 800H and 800HT Bars are good quality nickel Iron Chromium alloys with excellent oxidation resistance and high temperature exposure carburization. Save for the superior carbon degree in 800H. These alloys are indistinguishable. For high-temperature structural applications, Incoloy 800H / HT alloys are used Thanks to the level of nickel, both chloride stress cracking and broken down are extremely resistant.

The 800H and 800HT alloys have superior creep and stress rupture properties. The modification has been regulated in such a way that carbon content will nest from 0-05 to 0.10 percent. The high nickel content in ASTM B408 UNS N08811 means that the alloys are highly resistant both to corrosion cracking caused by chloride stress and to the fragility caused by sigma-phase precipitation. The Incoloy 800h Round Bar is outstanding with overall corrosion resistance.

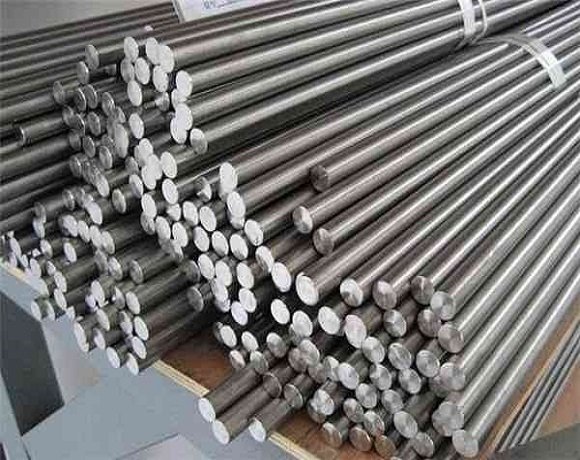

incoloy 800/ 800h/ 800ht round bar supplier exporter

Inconel 800HT Bright Bar, ASME SB 408 Incoloy Alloy 800 Black Bar, Incoloy 800 Industrial Round Bars, ASTM B408 800 Incoloy Square Bars, Incoloy 800HT Hollow Bar, Incoloy 800 Flat Bar,Incoloy 800 Round Bars Dealer, Incoloy 800H Rectangle Bar, Incoloy 800H Round Bars at Best Price, Incoloy Alloy 800/800H/800HT Round Bars Exporter in India, Incoloy Alloy 800H Hex Bar.

The high nickel content in the Inconel 800H Bar increases the corrosion resistance of alloys against many organic and inorganic compounds. The presence of nickel is also practically resistant to chloride-ion stress induced corrosion cracking by Alloy 800 Nickel Hot Rolled Bar. Chromium, in conjunction with nickel, increases alloys resistance to sulfur containing compounds while offering oxidation resistance at elevated temperatures or in the presence of corrosive solutions when applied to the Alloy 800H Inconel Polished Bar.

Specification :

Specifications	ASTM B408 / ASME SB408
Range	3.17 MM TO 350 MM DIA
Dia Meter	25mm to 152mm
Length	1 to 6 Meters, Custom Cut Lengths
Finish	Bright, Polish & Black
Form	Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging etc
Condition	Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished

Types of Incoloy 800/ 800H/ 800HT Round Bar :

ASTM B408 Incoloy 800 Round Bar Werkstoff Nr. 1.4876 Round Bar ASTM B564 UNS N08800 Round Bar	ASTM B408 Incoloy 800H Round Bar Werkstoff Nr. 1.4958 Round Bar ASTM B564 UNS N08810 Round Bar	ASTM B408 Incoloy 800HT Round Bar Werkstoff Nr. 1.4959 Round Bar ASTM B564 UNS N08811 Round Bar
ASTM B408 Incoloy 800 Bright Bars Werkstoff Nr. 1.4876 Bright Bars ASTM B564 UNS N08800 Bright Bars	ASTM B408 Incoloy 800H Bright Bars Werkstoff Nr. 1.4958 Bright Bars ASTM B564 UNS N08810 Bright Bars	ASTM B408 Incoloy 800HT Bright Bars Werkstoff Nr. 1.4959 Bright Bars ASTM B564 UNS N08811 Bright Bars
ASTM B408 Incoloy 800 Flat Bars Werkstoff Nr. 1.4876 Flat Bars ASTM B564 UNS N08800 Flat Bars	ASTM B408 Incoloy 800H Flat Bars Werkstoff Nr. 1.4958 Flat Bars ASTM B564 UNS N08810 Flat Bars	ASTM B408 Incoloy 800HT Flat Bars Werkstoff Nr. 1.4959 Flat Bars ASTM B564 UNS N08811 Flat Bars
ASTM B408 Incoloy 800 Ingot Bars Werkstoff Nr. 1.4876 Ingot Bars ASTM B564 UNS N08800 Ingot Bars	ASTM B408 Incoloy 800H Ingot Bars Werkstoff Nr. 1.4958 Ingot Bars ASTM B564 UNS N08810 Ingot Bars	ASTM B408 Incoloy 800HT Ingot Bars Werkstoff Nr. 1.4959 Ingot Bars ASTM B564 UNS N08811 Ingot Bars
ASTM B408 Incoloy 800 Hex Bars Werkstoff Nr. 1.4876 Hex Bars ASTM B564 UNS N08800 Hex Bars	ASTM B408 Incoloy 800H Hex Bars Werkstoff Nr. 1.4958 Hex Bars ASTM B564 UNS N08810 Hex Bars	ASTM B408 Incoloy 800HT Hex Bars Werkstoff Nr. 1.4959 Hex Bars ASTM B564 UNS N08811 Hex Bars
ASTM B408 Incoloy 800 Rods Werkstoff Nr. 1.4876 Rods ASTM B564 UNS N08800 Rods	ASTM B408 Incoloy 800H Rods Werkstoff Nr. 1.4958 Rods ASTM B564 UNS N08810 Rods	ASTM B408 Incoloy 800HT Rods Werkstoff Nr. 1.4959 Rods ASTM B564 UNS N08811 Rods
ASTM B408 Incoloy 800 Rectangular Bars Werkstoff Nr. 1.4876 Rectangular Bars ASTM B564 UNS N08800 Rectangular Bars	ASTM B408 Incoloy 800H Rectangular Bars Werkstoff Nr. 1.4958 Rectangular Bars ASTM B564 UNS N08810 Rectangular Bars	ASTM B408 Incoloy 800HT Rectangular Bars Werkstoff Nr. 1.4959 Rectangular Bars ASTM B564 UNS N08811 Rectangular Bars
ASTM B408 Incoloy 800 Square Bars Werkstoff Nr. 1.4876 Square Bars ASTM B564 UNS N08800 Square Bars	ASTM B408 Incoloy 800H Square Bars Werkstoff Nr. 1.4958 Square Bars ASTM B564 UNS N08810 Square Bars	ASTM B408 Incoloy 800HT Square Bars Werkstoff Nr. 1.4959 Square Bars ASTM B564 UNS N08811 Square Bars
ASTM B408 Incoloy 800 Threaded Bars Werkstoff Nr. 1.4876 Threaded Bars ASTM B564 UNS N08800 Threaded Bars	ASTM B408 Incoloy 800H Threaded Bars Werkstoff Nr. 1.4958 Threaded Bars ASTM B564 UNS N08810 Threaded Bars	ASTM B408 Incoloy 800HT Threaded Bars Werkstoff Nr. 1.4959 Threaded Bars ASTM B564 UNS N08811 Threaded Bars

Equivalent Grade :

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32T
Incoloy 800H	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	-	X8NiCrAlTi32-21	XH32T

Chemical Composition :

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
Incoloy 800	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30 – 35	19 – 23	0.15 – 0.60	0.15 – 0.60
Incoloy 800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30 – 35	19 – 23	0.15 – 0.60	0.15 – 0.60
Incoloy 800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30 – 35	19 – 23	0.15 – 0.60	0.15 – 0.60

Dimensions of Incoloy 800/ 800H/ 800HT Round Bar

Incoloy 800/ 800H/ 800HT Round Bar Weight Chart

Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr
3mm	0.017	0.055	20mm	0.753	2.470	3"	10.900	35.762
1/8"	0.019	0.062	22mm	0.908	2.979	3-1/4"	12.800	41.996
5/32"	0.029	0.095	7/8"	0.926	3.038	3-1/2"	14.850	48.772
4mm	0.030	0.098	24mm	1.080	3.543	3-3/4"	17.001	55.780
3/16"	0.043	0.141	25mm	1.180	3.871	4"	19.306	63.340
5mm	0.047	0.154	1"	1.210	3.970	4-1/4"	21.908	72.249
7/32"	0.058	0.190	26mm	1.271	4.170	4-1/2"	24.4487	80.340
6mm	0.068	0.223	27mm	1.368	4.490	4-3/4"	27.366	90.249
1/4"	0.076	0.249	1-1/8"	1.534	5.033	5"	30.461	99.940
7mm	0.091	0.298	30mm	1.691	5.548	5-1/2"	36.690	121.000
5/16"	0.118	0.387	1-1/4"	1.924	6.349	6"	43.860	143.900
8mm	0.120	0.398	32mm	1.894	6.314	6-1/2"	51.093	167.630
9mm	0.152	0.498	1-3/8"	2.303	7.550	7"	59.432	196.000
3/8"	0.170	0.557	35mm	2.390	7.553	7-1/2"	68.226	225.000
10mm	0.189	0.620	36mm	2.438	7.999	8"	77.586	254.55
11mm	0.228	0.748	38mm	2.792	8.903	10"	121.048	397.140
7/16"	0.232	0.761	1-1/2"	2.715	8.951
12mm	0.271	0.889	40mm	3.009	9.872
1/2"	0.303	0.994	1-5/8"	3.200	10.449
13mm	0.318	1.043	1-3/4"	3.712	12.179
14mm	0.368	1.207	45mm	3.807	12.555
9/16"	0.383	1.256	1-7/8"	4.260	13.977
15mm	0.424	1.391	48mm	4.330	14.205
5/8"	0.473	1.551	50mm	4.698	15.414
16mm	0.481	1.578	2"	4.848	15.906
17mm	0.543	1.791	2-1/8"	5.475	17.963
11/16"	0.573	1.880	2-1/4"	6.135	20.128
18mm	0.610	2.001	60mm	6.768	22.205
3/4"	0.682	2.237	2-3/8"	6.838	22.435
			2-1/2"	7.576	24.856
			2-5/8"	8.354	27.409
			2-3/4"	9.169	30.083

Incoloy 800/ 800H/ 800HT Round Bar Sizes :

Metric		US Bar		ASTM/ Canadian		Japanese
Bar Size	Diam. (mm)	Bar Size	Diam. (Inch)	Bar Size	Diam. (mm2)	Bar Size	Diam. (mm)
5	5	#2	0.250	10M	100	6	6
5.5	5.5	#3	0.375	15M	200	10	10
6	6	#4	0.500	20M	300	13	13
7	7	#5	0.625	25M	500	16	16
8	8	#6	0.750	30M	700	19	19
9	9	#7	0.875	35M	1000	22	22
10	10	#8	1.000	45M	1500	25	25
11	11	#9	1.125	55M	2500	29	29
12	12	#10	1.250			32	32
14	14	#11	1.375			35	35
16	16	#12	1.500			38	38
18	18	#13	1.625			41	41
20	20	#14	1.750			44	44
22	22	#15	1.875			48	48
25	25	#16	2.000			51	51
28	28	#18	2.250			57	57
32	32
36	36
40	40
44	44
50	50

Tolerance of Incoloy 800/ 800H/ 800HT Bright Round Bar (BS EN ISO 286-2)

NOMINAL SIZE	h5	h6	h7	h8	h9	H10	H11	h12
DIAMETER mm	h5	h6	h7	h8	h9	H10	H11	h12
~ to 3	+0.004/0	+0.006/0	+0.01/0	+0.014/0	+0.025/0	+0.04/0	+0.06/0	+0.1/0
over 3 to 6	+0.005/0	+0.008/0	+0.012/0	+0.018/0	+0.03/0	+0.048/0	+0.075/0	+0.12/0
over 6 to 10	+0.006/0	+0.009/0	+0.015/0	+0.022/0	+0.036/0	+0.058/0	+0.09/0	+0.15/0
over 10 to 18	+0.008/0	+0.011/0	+0.018/0	+0.027/0	+0.043/0	+0.07/0	+0.11/0	+0.18/0
over 18 to 30	+0.009/0	+0.013/0	+0.021/0	+0.033/0	+0.052/0	+0.084/0	+0.13/0	+0.21/0
over 30 to 50	+0.011/0	+0.016/0	+0.025/0	+0.039/0	+0.062/0	+0.1/0	+0.16/0	+0.25/0
over 50 to 80	+0.013/0	+0.019/0	+0.03/0	+0.046/0	+0.074/0	+0.12/0	+0.19/0	+0.3/0
over 80 to 120	+0.015/0	+0.022/0	+0.035/0	+0.054/0	+0.087/0	+0.14/0	+0.22/0	+0.35/0
over 120 to 180	+0.018/0	+0.025/0	+0.04/0	+0.063/0	+0.1/0	+0.16/0	+0.25/0	+0.4/0
over 180 to 250	+0.02/0	+0.029/0	+0.046/0	+0.072/0	+0.115/0	+0.185/0	+0.29/0	+0.46/0

Prices of Incoloy 800/ 800H/ 800HT Round Bar:

Rod
FOB Price: US $350.00 - US $950.00/ Ton

Hex Bar
FOB Price: US $2,200.00 - US $4,000.00/ Ton

Round Bar
FOB Price: US $18.00 - US $20.00/ Kilograms

Flat Bar
FOB Price: US $2,800.00 - US $2,880.00/ Ton

Bar Material
FOB Price: US $1,300.00 - US $3,000.00/ Ton

Alloy Rounds
FOB Price: US $14.00 - US $15.00/ Kilograms

Square Bar
FOB Price: US $4,430.00 - US $4,500.00/ Ton

Annealed Bar
FOB Price: US $1,200.00 - US $2,500.00/ Ton

Polished Bar
FOB Price: US $1,799.00 - US $1,999.00/ Ton

SAF Bright Bar
FOB Price: US $1,000.00 - US $3,000.00/ Ton

Round Bar Cold Drawn
FOB Price: US $600.00 - US $650.00/ Ton

Black Bar
FOB Price: US $700.00 - US $750.00/ Ton

Round Bar Hot Rolled
FOB Price: US $100.00 - US $500.00/ Piece

Flat Bar Hot Rolled
FOB Price: US $1,200.00 - US $5,000.00/ Ton

Flat Bar Cold Drawn
US $1,999.00 - US $2,999.00/ Tons

Square Bar Hot Rolled
FOB Price: US $4,230.00 - US $4,400.00/ Ton

Applications :

These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.

Packaging Used By Us :

We ship our stainless steel metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. We pack our goods in numerous ways based on the products. We pack our products in multiple ways.

Testing Used By Us :

To specify the various physical and mechanical properties of the finished product, various tests, both destructive and nondestructive, are performed. Metallurgical, hardness, hardenability, tension, ductility, compression, fatigue, impact, wear, corrosion, creep, machinability, radiography, magnetic particle, ultrasonic, and eddy current are some of the major tests that are performed by quality control personnel. Metallurgical testing is used to determine the quality of steel by analyzing the microstructure of a sample under a microscope. A cross section of a sample is first highly polished and then examined at a magnification from 100-500 diameters. The microstructure of steel consists of grains of different compositions and sizes.
