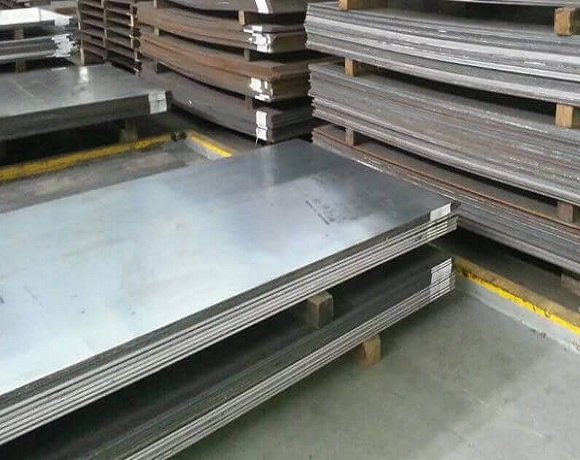

Super Duplex Steel S32750 / 2507 Sheet consists good mechanical and structural properties. At Silicon Steels, Super Duplex 2507 Sheet is one of the highest selling products we offer. The reason behind its increasing demand is it is highly durable, easy to install and maintain over the period of time, it is highly corrosion resistant grade, it possesses high mechanical strength, and it is available in different shapes and sizes, customization option is also available here, customer can order this plates as per their specification. Super Duplex Steel S32750 Plates consists 26% chromium content, 8% nickel content, and up to 5% molybdenum content.
Super Duplex Steel DIN 2507 Plates offers the best corrosion resistance to many corrosive environments. It can be used effectively in severe environments. It provides better corrosion resistance to chloride containing environment and chloride corrosion. The thickness of Super Duplex Steel ranges from 0.3mm to 50mm. It has high thermal conductivity. Super Duplex Steel 32750 Sheet has the best corrosion resistance to pitting and crevice corrosion and organic and inorganic acids. It also offers corrosion resistance to the aqueous solution, seawater corrosion, and chloride stress corrosion cracking.
These Super Duplex Steel S23750 / 2507 Sheet / Plate has a wide range of applications in different industries. Super Duplex Steel S32750 Plates are mostly used in marine industries and offshore oil drilling companies. Super Duplex Steel S32507 Plates are widely used in food processing equipment and food packaging equipment. It is also used in gas processing units, petrochemical industries, and oil & gas refineries. Super Duplex Steel UNS S32750 / 2507 Sheets are available at very cost-effective rates.
Super duplex 32750/2507 sheets and plates are commonly made of high alloyed material. These sheet plates are used for multiple purposes. These sheets, plates are widely used for manufacturing equipment like drums, cans, and other types of equipment.
Super duplex 32750/2507 sheets, plates are manufactured using high quality and approved elements like molybdenum, nickel, chromium, etc. The grade includes 25% chromium, 7% nickel, and 4% molybdenum content. These super duplex sheets, plates provide excellent protection from all types of chemical reactions. These sheets and plates offer superior protection from the present chloride environment. These sheets, plates are low alloyed and have excellent properties. Super duplex 32750/2507 sheets are highly used to manufacture cans, bolts, drums, fasteners and other types of equipment. These sheets and plates have extraordinary characteristics. Super duplex is made of high-quality austenitic steel, so it is enriched with high thermal conductivity and strength. Super duplex also provides excellent resistance from reactions like corrosion, crevice corrosion and stress cracking. Super duplex has a high thermal conductivity which is why it supports pitting, welding and other heat treatments. The tensile strength of these sheets and plates is relatively high. The tensile strength is 80000 psi, and yield strength is 116000 psi.
| Specifications | ASTM A240 / ASME SA240 |
| Thickness | 4mm-100mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hairline, sand
blast, Brush, etching, etc |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| STANDARD | UNS | WERKSTOFF NR. |
| Super Duplex 2507 | S32750 | 1.4410 |
| Grade | C | N | P | Si | Mn | Mo | Ni | Cr | S | Cu |
| S32750 | 0.030 | 0.24/0.32 | 0.035 | 0.80 | 1.20 | 3.0/5.0 | 6.00/8.00 | 24.0/26.0 | 0.020 | 0.50 |
Super Duplex Plate Metric Dimensions
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed | 0.25–8.0 | max. 2032 |
| 2D – Cold rolled, heat treated, pickled | 0.4–6.35 | max. 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled | 0.4–8.0 | max. 2032 |
| 2R – Cold rolled, bright annealed | 0.25–3.5 | max. 1524 |
| 2H – Work hardened | 0.4–6.35 | max. 1524 |
| Polished, brushed | 0.5–4.0 | max. 1524 |
Imperial Dimensions of Super Duplex Sheet
| Surface finish | Gauge (in) | Width (in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed | 10–24 | max. 72* |
| 2D – Cold rolled, heat treated, pickled | 12–24 | max. 60 |
| BA Mexinox only | 18–28 | max. 48 |
| Polished (not brushed) | 11–24 | max. 60 |
| Temper rolled Mexinox only | 13–29 | max. 48 |
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.
We ship our stainless steel metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. We pack our goods in numerous ways based on the products. We pack our products in multiple ways.
To specify the various physical and mechanical properties of the finished product, various tests, both destructive and nondestructive, are performed. Metallurgical, hardness, hardenability, tension, ductility, compression, fatigue, impact, wear, corrosion, creep, machinability, radiography, magnetic particle, ultrasonic, and eddy current are some of the major tests that are performed by quality control personnel. Metallurgical testing is used to determine the quality of steel by analyzing the microstructure of a sample under a microscope. A cross section of a sample is first highly polished and then examined at a magnification from 100-500 diameters. The microstructure of steel consists of grains of different compositions and sizes.
