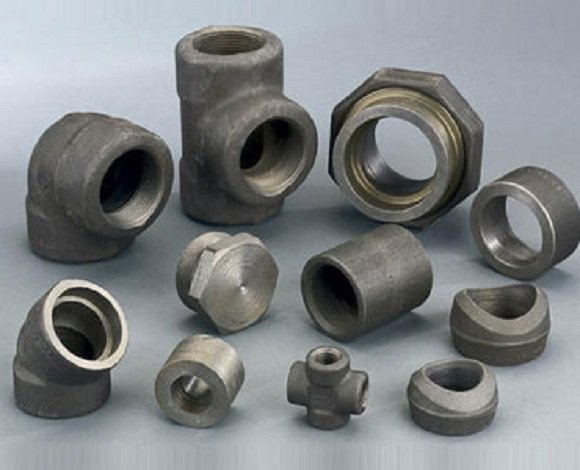

Silicon Steels is a Manufacturer and Supplier of Incoloy 800/ 800H/ 800HT Socketweld Fittings which are made of high-quality raw material. Across different sizes, thickness and types, the Socketweld fittings are designed to suit your needs. The industry offers very good quality of Socketweld Fittings due to the highly-skilled, competent and effective use of the latest technologies and machinery. Such Socketweld fittings are very useful for structural construction, factory manufacturing, machinery construction and mining. These sockets weld are made out of highly durable alloy. The socket weld fittings made from this steel have a higher performance power, a higher friction resistance.
Nickel Iron Chrome Alloys Incoloy 800, 800H and 800HT have good tolerance and are high-temperature contact resistant to oxidation and carburization. All nickel steel alloys are the same except the high carbon content of 800H alloy and adding up to 1.20% aluminium and titanium to 800HT alloy. The first of these alloys was Incoloy 800, which was slightly changed to be Incoloy 800H to regulate carbon and grain size (0.05-.10 per cent) to maximize stress rupture.
The combined amount of titanium and aluminium (0,85-1,20 per cent) is adjusted further by Incoloy 800HT to guarantee optimum, high temperatures. Nickel alloy (nickel alloy 800H / HT) is dual rated and blends all forms. For high-temperature structural applications, Incoloy 800H / HT alloy was intended. The nickel content makes the alloys highly resistant to chloride stress-corrosion and oxidation from sigma process.
Incoloy 800 is mainly used in applications up to 1100 ° F where 800H and 800HT alloys are usually used over the 1100 ° F temperature when cranking resistant and breaking is required. The chemical balance permits a high resistance of the nickel steel alloy to carburizing, oxidation and nitride atmospheres. Even in the range of 1200-1600 ° F after long periods of use, Incoloy 800HT won't become breakable with other stainless steels. Excellent cold forming properties are demonstrated with 800HT usually in conjunction with nickel-chromium alloys.
Such Socketweld Fittings are subject to numerous testing and inspections after the manufacturing process to check their consistency and performance. Under guidelines and legislation from experts according to technical standards and laws, the entire research cycle takes place.
The tests include assessments by third parties, ultrasonic testing, x-rays, visual checks and macro / micro-tests. Also, there are few more tests, such as destructive tests / non-destructive tests, chemical composition analyzes, and accurate recognition tests for products is done.
Specifications | ASTM B564 & ASME SB564 |
Dimension Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Size Range | 1/8" NB to 4" NB (Socketweld & Screwed-Threaded) |
Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
Type | Socketweld Fittings, Screwed-Threaded Fittings |
Forged Fittings Items | 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 | XH32T |
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
Incoloy 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30 – 35 | 19 – 23 | 0.15 – 0.60 | 0.15 – 0.60 |
Incoloy 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30 – 35 | 19 – 23 | 0.15 – 0.60 | 0.15 – 0.60 |
Incoloy 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30 – 35 | 19 – 23 | 0.15 – 0.60 | 0.15 – 0.60 |
These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.
