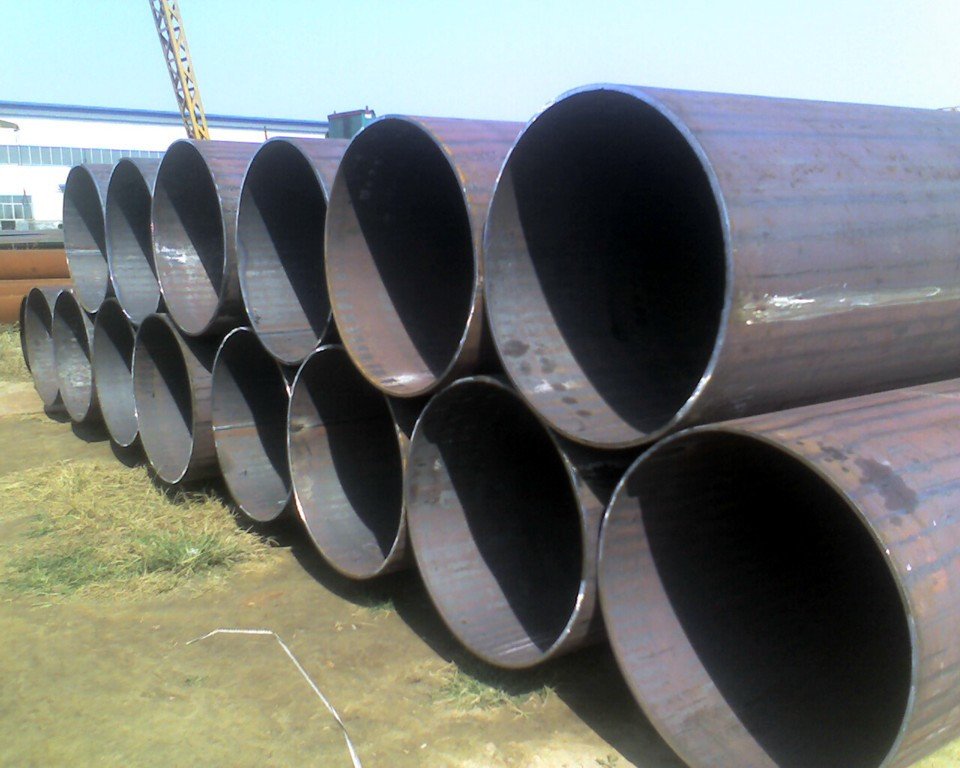

Silicon Steels is a manufacturer, supplier, and exporter of Inconel 625 ERW Pipe. We produce products and components that are vital to the implementation of industrial applications. One product from our inventory that is on-demand from various industries is Inconel 625 EFW Tubes. The capacity of Inconel 625 pipes has improved. The Inconel Alloy 625 Seamless Tube have a split and a seawater pit tolerance. These are non-magnetic and resilient to the cracking of chlorides stress. Inconel 625 pipe is a good choice for applications of sea water and is highly robust in a wide range of organic and mineral acids. Inconel 625 Round Pipes are also sold to our customers in various sizes and shapes.
Inconel 625 Hexagonal Pipe has exceptional strength due to the alloy's presence of nickel and chromium. It has excellent resistance to fatigue and adequate corrosion resistance. Because of these fittings' high-temperature tolerance, they may even be utilized in high-temperature applications at temperatures far higher than normal. Inconel WERKSTOFF NR. 2.4856 Pipe may be used for a wide number of standard applications within industries. These applications include strengthening goals. We are a retailer of such items that may be used in producing pharmaceuticals, gas, petrochemicals, batteries, and other types of construction machines, among other applications.
The addition of nickel and chromium gives Inconel 625 Pipe Fittings an outstanding power. It has a superior resistance to fatigue and sufficient resistance to corrosion. Thanks to their great temperature tolerance these fittings can also be used in higher temperatures in high-temperature applications. For reinforcing purposes Inconel 625 pipe fittings are suitable for a variety of general uses in industries. We sell such devices to be used in medicinal products, gas manufacturing, petrochemicals, batteries, construction machinery, etc. The hydrostatic testing shall be performed on each Inconel 625 Hollow pipe or pipeline, as defined in ASTM B444. In addition a non-destructive electronic test as stated in the criteria must conform the Inconel 625 ERW Tube to the appropriate fiber stress.
Specifications | ASME SB-444 ASME S B-444 ASME SB-444 ASME SB-725 |
Sizes | 8" NB to 24" NB |
Wall Thickness | 0.5 to 150mm Thick |
Schedule | SCH 5S, 10S,10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS |
Length | Single Random, Double Random & Required Length |
Form | Round, Square, Rectangular, Hydraulic Pipes |
Type | Electric Resistance Welded |
End | Plain end, Bevelled end |
Length | Single Random, Double Random & Cut Length |
![]() |
|
|
|
![]() |
|
|
|
![]() |
|
|
|
![]() |
|
|
|
![]() |
|
|
|
![]() |
|
|
|
![]() |
|
|
|
![]() |
|
|
|
![]() |
|
|
|
Grade | UNS No | Old British | Euronorm | GOST | Japanese JIS | ||
BS | En | No | AFNOR | ||||
Inconel 625 | N06625 | NA 21 | NiCr22Mo9Nb | 2.4856 | NC22DNB4M | ХН75МБТЮ | NCF 625 |
Grade | C | Mn | Si | Fe | S | Cr2 | Al-Ti | Ni | |
625 | min. | – | – | – | – | – | 20.0 | – | 58.0 |
max. | 0.10 | 0.50 | 0.50 | 5.0 | 0.015 | 23.0 | 0.40 | – |
Inconel 625 ERW Pipes Weight Chart
NPS | Outside Diameter | Wall Thickness | Weight | Weight | |||
in | mm | in | mm | Sched | kg/Mtr | Lb/ft | |
1/2″ | 0.840 | 21 | 0.109 | 2.769 | 40 STD | 1.268 | 0.851 |
0.147 | 3.734 | 80 STD | 1.621 | 1.088 | |||
3/4″ | 1.050 | 27 | 0.113 | 2.870 | 40 STD | 1.684 | 1.131 |
0.154 | 3.912 | 80 STD | 2.195 | 1.474 | |||
1″ | 1.315 | 33 | 0.133 | 3.378 | 40 STD | 2.501 | 1.679 |
0.179 | 4.547 | 80 STD | 3.325 | 2.172 | |||
1 1/4″ | 1.660 | 42 | 0.140 | 3.556 | 40 STD | 3.385 | 2.273 |
0.191 | 4.851 | 80 STD | 4.464 | 2.997 | |||
1 1/2″ | 1.900 | 48 | 0.145 | 3.683 | 40 STD | 4.048 | 2.718 |
0.200 | 5.080 | 80 STD | 5.409 | 3.361 | |||
2″ | 2.375 | 60 | 0.154 | 3.912 | 40 STD | 5.441 | 3.653 |
0.218 | 5.537 | 80 STD | 7.480 | 5.022 | |||
2 1/2″ | 2.875 | 73 | 0.203 | 5.516 | 40 STD | 8.629 | 5.793 |
0.276 | 7.010 | 80 STD | 11.411 | 7.661 | |||
3″ | 3.500 | 89 | 0.216 | 5.486 | 40 STD | 11.284 | 7.576 |
0.300 | 7.620 | 80 STD | 15.272 | 10.253 | |||
4″ | 4.500 | 114 | 0.237 | 6.020 | 16.073 | 10.790 | |
0.337 | 8.560 | 22.318 | 14.983 | ||||
6″ | 6.625 | 168 | 0.188 | 4.775 | 19.252 | 12.924 | |
0.203 | 5.516 | 20.739 | 13.923 | ||||
0.219 | 5.563 | 22.318 | 14.983 | ||||
0.250 | 6.350 | 25.354 | 17.021 | ||||
0.280 | 7.112 | 40 STD | 58.263 | 18.974 | |||
0.312 | 7.925 | 31.334 | 21.036 | ||||
0.375 | 9.525 | 37.285 | 25.031 | ||||
0.432 | 10.973 | 80 XHY | 42.561 | 28.573 | |||
0.500 | 12.700 | 48.719 | 32.708 | ||||
8″ | 8.625 | 219 | 0.188 | 4.775 | 25.233 | 16.940 | |
0.203 | 5.156 | 27.198 | 18.259 | ||||
0.219 | 5.563 | 29.286 | 19.661 | ||||
0.250 | 6.350 | 20 | 33.308 | 22.361 | |||
0.277 | 7.036 | 30 | 36.786 | 24.696 | |||
0.322 | 8.179 | 40 | 42.352 | 28.554 | |||
0.375 | 9.525 | 49.216 | 33.041 | ||||
0.406 | 10.312 | 60 | 53.085 | 35.638 | |||
0.500 | 12.700 | 80 XHY | 64.627 | 43.388 | |||
10″ | 10.750 | 273 | 0.188 | 4.775 | 31.588 | 21.207 | |
0.219 | 5.563 | 36.689 | 24.631 | ||||
0.250 | 6.350 | 20 | 41.759 | 28.035 | |||
0.307 | 7.798 | 30 | 51.002 | 34.240 | |||
0.344 | 8.738 | 56.946 | 38.231 | ||||
0.365 | 9.271 | 40 STD | 63.301 | 40.483 | |||
0.438 | 11.125 | 71.852 | 48.238 | ||||
0.500 | 12.700 | 60 XHY | 81.530 | 54.735 | |||
0.594 | 15.088 | 80 | 95.969 | 64.429 | |||
12″ | 12.750 | 324 | 0.188 | 4.775 | 37.570 | 25.222 | |
0.219 | 5.563 | 43.657 | 29.309 | ||||
0.250 | 6.350 | 49.713 | 33.375 | ||||
0.281 | 7.137 | 55.739 | 37.420 | ||||
0.312 | 7.925 | 61.735 | 41.445 | ||||
0.375 | 9.525 | 73.824 | 49.562 | ||||
0.406 | 10.312 | 79.727 | 53.525 | ||||
0.500 | 12.700 | 97.438 | 65.415 | ||||
0.562 | 14.275 | 108.966 | 73.154 | ||||
14″ | 14.000 | 356 | 0.188 | 4.775 | 41.308 | 27.732 | |
0.219 | 5.563 | 48.012 | 32.233 | ||||
0.250 | 6.350 | 20 | 54.685 | 36.713 | |||
0.281 | 7.137 | 61.327 | 41.172 | ||||
0.312 | 7.925 | 67.939 | 45.611 | ||||
0.375 | 9.525 | STD | 81.281 | 54.568 | |||
0.438 | 11.125 | 40 | 94.498 | 63.441 | |||
0.500 | 12.700 | XHY | 107.381 | 72.090 | |||
0.625 | 15.875 | 132.983 | 89.278 | ||||
16” | 16.000 | 406 | 0.188 | 4.775 | 47.290 | 21.748 | |
0.219 | 5.563 | 54.980 | 36.910 | ||||
0.250 | 6.350 | 10 | 62.639 | 42.053 | |||
0.281 | 7.137 | 70.268 | 47.174 | ||||
0.312 | 7.925 | 20 | 77.866 | 52.275 | |||
0.344 | 8.738 | 85.677 | 57.519 | ||||
0.375 | 9.525 |
30 STD |
93.213 | 62.578 | |||
0.438 | 11.125 | 108.433 | 72.797 | ||||
0.500 | 12.700 |
40 XHY |
123.289 | 82.770 | |||
18″ | 18.000 | 457 | 0.219 | 5.563 | 61.948 | 41.588 | |
0.250 | 6.350 | 70.593 | 47.393 | ||||
0.281 | 7.137 | 79.208 | 53.176 | ||||
0.312 | 7.925 | 20 | 87.792 | 58.939 | |||
0.375 | 9.525 | STD | 105.144 | 70.588 | |||
0.438 | 11.125 | 30 | 122.369 | 82.152 | |||
0.500 | 12.700 | XHY | 139.198 | 93.450 | |||
0.562 | 14.275 | 40 | 155.904 | 104.666 | |||
0.625 | 15.875 | 172.754 | 115.978 | ||||
20″ | 20.000 | 508 | 0.250 | 6.350 | 78.547 | 52.733 | |
0.282 | 7.163 | 88.458 | 59.386 | ||||
0.312 | 7.925 | 97.719 | 65.604 | ||||
0.375 | 9.525 | 20 STD | 117.075 | 78.598 | |||
0.438 | 11.125 | 136.305 | 91.508 | ||||
0.500 | 12.700 | 30 XHY | 155.106 | 104.130 | |||
0.594 | 15.088 | 40 | 183.378 | 123.110 | |||
0.625 | 15.875 | 192.640 | 129.328 | ||||
0.688 | 17.475 | 211.368 | 141.901 | ||||
24″ | 24.000 | 610 | 0.250 | 6.350 | 94.456 | 63.413 | |
0.281 | 7.137 | 106.029 | 71.183 | ||||
0.312 | 7.925 | 117.573 | 18.932 | ||||
0.375 | 9.525 | 20 STD | 140.938 | 64.618 | |||
0.438 | 11.125 | 164.176 | 110.219 | ||||
0.500 | 12.700 | XHY | 186.923 | 125.490 | |||
0.625 | 15.875 | 232.410 | 156.028 | ||||
0.688 | 17.475 | 40 | 255.148 | 171.293 | |||
0.750 | 19.050 | 277.401 | 186.233 | ||||
30″ | 30.000 | 762 | 0.250 | 6.350 | 118.318 | 79.433 | |
0.281 | 7.137 | 132.851 | 89.189 | ||||
0.312 | 7.925 | 10 | 147.353 | 98.925 | |||
0.375 | 9.525 | STD | 176.731 | 118.648 | |||
0.438 | 11.125 | 205.983 | 138.286 | ||||
0.500 | 12.700 | 20 XHY | 234.647 | 157.530 | |||
0.625 | 15.875 | 30 | 292.066 | 196.078 | |||
0.688 | 17.475 | 320.817 | 215.380 | ||||
0.750 | 19.050 | 348.988 | 234.293 | ||||
36″ | 36.000 | 914 | 0.250 | 6.350 | 142.180 | 95.453 | |
0.281 | 7.137 | 159.672 | 107.196 | ||||
0.312 | 7.925 | 10 | 177.133 | 118.918 | |||
0.375 | 9.525 | STD | 215.525 | 142.678 | |||
0.438 | 11.125 | 247.790 | 166.353 | ||||
0.500 | 12.700 | 20 XHY | 282.372 | 198.570 | |||
0.625 | 15.875 | 351.723 | 236.128 | ||||
0.688 |
17.475 | 386.487 | 259.467 | ||||
0.750 |
19.050 | 420.576 | 282.353 | ||||
42″ | 42.000 | 1067 | 0.312 | 7.925 | 206.914 | 138.911 | |
0.375 | 9.525 | STD | 248.319 | 166.708 | |||
0.500 | 12.700 | XHY | 33.097 | 221.610 | |||
0.750 | 19.050 | 492.163 | 330.413 | ||||
48″ | 48.000 | 1219 | 0.375 | 9.525 | STD | 284.112 | 190.738 |
0.438 | 11.125 | 331.404 | 222.487 | ||||
0.500 | 12.700 | XHY | 377.822 | 253.650 | |||
0.750 | 19.050 | 563.750 | 378.473 | ||||
0.875 | 22.225 | 655.969 | 440.383 |
Imperial Dimensions of Inconel 625 ERW Pipes Sizes
Pipe OD mm |
Pipe WT mm |
in. | Sch | Kg/m |
---|---|---|---|---|
13.72 | 1.65 | 1/4 | 10S | 0.50 |
13.72 | 2.24 | 1/4 | 40S | 0.64 |
13.72 | 3.02 | 1/4 | 80S | 0.81 |
17.15 | 1.65 | 3/8 | 10S | 0.64 |
17.15 | 2.31 | 3/8 | 40S | 0.86 |
17.15 | 3.20 | 3/8 | 80S | 1.12 |
21.34 | 2.11 | 1/2 | 10S | 1.02 |
21.34 | 2.77 | 1/2 | 40S | 1.29 |
21.34 | 3.73 | 1/2 | 80S | 1.65 |
26.67 | 2.11 | 3/4 | 10S | 1.30 |
26.67 | 2.87 | 3/4 | 40S | 1.71 |
26.67 | 3.91 | 3/4 | 80S | 2.23 |
33.40 | 2.77 | 1 | 10S | 2.13 |
33.40 | 3.38 | 1 | 40S | 2.54 |
33.40 | 4.55 | 1 | 80S | 3.29 |
33.40 | 6.352) | 1 | 160 | 4.30 |
42.16 | 2.77 | 1¼ | 10S | 2.73 |
42.16 | 3.56 | 1¼ | 40S | 3.44 |
42.16 | 4.85 | 1¼ | 80S | 4.53 |
42.16 | 6.352) | 1¼ | 160 | 5.69 |
48.26 | 2.77 | 1½ | 10S | 3.16 |
48.26 | 3.68 | 1½ | 40S | 4.11 |
48.26 | 5.08 | 1½ | 80S | 5.49 |
60.33 | 2.77 | 2 | 10S | 3.99 |
60.33 | 3.91 | 2 | 40S | 5.52 |
60.33 | 5.54 | 2 | 80S | 7.60 |
60.33 | 8.742) | 2 | 160 | 11.29 |
73.03 | 3.05 | 2½ | 10S | 5.35 |
73.03 | 5.16 | 2½ | 40S | 8.77 |
73.03 | 7.01 | 2½ | 80S | 11.59 |
88.90 | 3.05 | 3 | 10S | 6.56 |
88.90 | 5.49 | 3 | 40S | 11.47 |
88.90 | 7.62 | 3 | 80S | 15.51 |
88.90 | 11.132) | 3 | 160 | 21.67 |
101.60 | 3.05 | 3½ | 10S | 7.53 |
101.60 | 5.74 | 3½ | 40S | 13.78 |
101.60 | 8.08 | 3½ | 80S | 18.92 |
114.30 | 3.05 | 4 | 10S | 8.50 |
114.30 | 6.02 | 4 | 40S | 16.32 |
114.30 | 8.56 | 4 | 80S | 22.67 |
114.30 | 13.492) | 4 | 160 | 34.05 |
141.30 | 6.55 | 5 | 40S | 22.10 |
141.30 | 9.53 | 5 | 80S | 31.44 |
141.30 | 15.882) | 5 | 160 | 49.87 |
168.28 | 3.4 | 6 | 10S | 14.04 |
168.28 | 7.11 | 6 | 40S | 28.69 |
168.28 | 10.97 | 6 | 80S | 43.21 |
168.28 | 14.27 | 6 | 120 | 54.75 |
168.28 | 18.262) | 6 | 160 | 68.59 |
219.08 | 8.18 | 8 | 40S | 43.20 |
219.08 | 12.7 | 8 | 80S | 65.63 |
219.08 | 18.23 | 8 | 120 | 91.30 |
219.08 | 23.012) | 8 | 160 | 112.97 |
Pipe O.D. (In.) |
Wall Thickness Of Pipe (Inches) | |||||||
---|---|---|---|---|---|---|---|---|
.028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
Working Pressure (Psig) | ||||||||
1/8 | 7900 | 10100 | ||||||
1/4 | 3700 | 4800 | 7000 | 9500 | ||||
5/16 | 3700 | 5400 | 7300 | |||||
3/8 | 3100 | 4400 | 6100 | |||||
1/2 | 2300 | 3200 | 4400 | |||||
3/4 | 2200 | 3000 | 4000 | 4600 | ||||
1 | 2200 | 2900 | 3400 | 3900 | 4300 |
Types | Out diameter | Wall thickness | Length |
---|---|---|---|
NB Sizes (in stock) | 1/8” ~ 8” | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Upto 6 Meters |
Duplex 2205 ERW Pipe (Custom Sizes) | 5.0mm ~ 203.2mm | As per requirement | Upto 6 Meters |
Duplex 2205 Welded Pipe (in Stock + Custom Sizes) | 5.0mm ~ 1219.2mm | 1.0 ~ 15.0 mm | Upto 6 Meters |
These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.
We ship our stainless steel metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. We pack our goods in numerous ways based on the products. We pack our products in multiple ways.
To specify the various physical and mechanical properties of the finished product, various tests, both destructive and nondestructive, are performed. Metallurgical, hardness, hardenability, tension, ductility, compression, fatigue, impact, wear, corrosion, creep, machinability, radiography, magnetic particle, ultrasonic, and eddy current are some of the major tests that are performed by quality control personnel. Metallurgical testing is used to determine the quality of steel by analyzing the microstructure of a sample under a microscope. A cross section of a sample is first highly polished and then examined at a magnification from 100-500 diameters. The microstructure of steel consists of grains of different compositions and sizes.
