Stainless Steel 321 Erw Pipe

Stainless Steel 321 ERW Pipes Supplier in Mumbai, SS SUS 321 ERW Pipe, Stainless Steel 321 Electric Resistance Welded Pipes, 321 SS Electric Resistance Welded Pipe, Stainless Steel 321 ERW Pipes.


ERW Pipe

Table of Content

Silicon Steels is the leading manufacturer and the most popular supplier and manufacturer of Stainless Steel 321 ERW Pipes. The 321 Stainless Steel Tube was engineered to resist intergranular corrosion, in particular in high temperature environments. The more traditional austenitic stainless steel grade is prone to chromium carbide precipitation at a temperature between 800 ° and 1500 ° F, compared to Stainless Steel 321H EFW Pipes with greater creeping strength and stress breaking. The ASTM A312 TP 321 Stainless Steel Pipe also has excellent strength characteristics at lower temperatures.

321 Seamless steel ERW pipes with the use of modern machines to test the consistency in order to manufacture high-quality goods for our customers. Our 321/321H soldering pipes are available to customers in various sizes, thickness and specifications. Stainless Alloy 321H is a general purpose austenitic, carbide-stabilized steel designed for working at temperature between 427 ° C and 816 ° C in carbide precipitation. When exposed to slightly corrosive conditions, SS 321 pipes are not subject to weld decay intergranular corrosion. Grade 321H pipes resistance to sensitization, coupled with their higher strength at high temperatures makes them ideal when they are prone or have inadequate hot energy.


Manuctacturing ERW Pipe
ERW Pipe Process

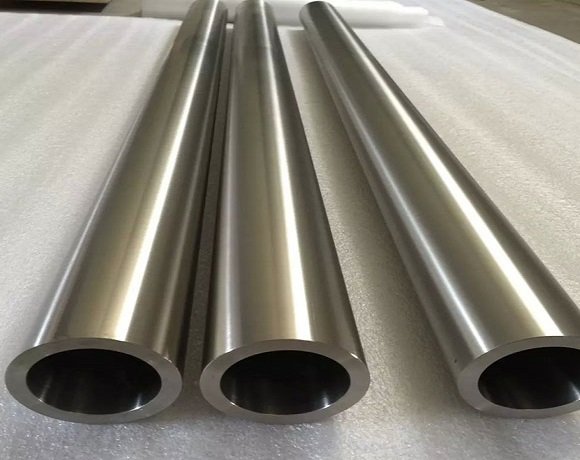

stainless steel 321 erw pipe supplier stockist

ASME SA 312 SS 321 ERW Pipes, Stainless Steel 321 Round ERW Pipes, Austenitic Stainless Steel 321 ERW Pipes at Best Price, SS 321 ERW Pipes Exporter in India, SS 321 Industrial ERW Pipes, SS 321 ERW Pipes Dealer.

SS 321H Tubes are also used in the production of radiant supercharges, boilers, steam pipes and refinery piping in general. While our pipes in Alloy 321 have high strengths, there is still enough residual flexibility to allow for a substantial cold deformation. Applications of these Alloy 321 H Welded tubes include exhaust and filters, chemical processing equipment, welding equipment. Application: Our 321 Steel Pipes are a highly versatile material with high resistance to creep with oxidation for a variety of purposes. These UNS S32100 seamless pipes have been designed in Designed with international and national standards and are provided for our valued customers in personalized dimensions and shapes. Such SS 321 ERW Tubing, also known as WNR 1.4541, can be found on the market at the highest possible prices.

Specification :

Specifications ASTM A312 / ASME SA312
Sizes 8" NB to 24" NB
Wall Thickness 0.5 to 150mm Thick
Schedule SCH 5S, 10S,10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS
Length Single Random, Double Random & Required Length
Form Round, Square, Rectangular, Hydraulic Pipes
Type Electric Resistance Welded
End Plain end, Bevelled end
Length Single Random, Double Random & Cut Length

Types of Stainless Steel 321 ERW Pipes :


steel ERW pipe
  • ASTM A312 Stainless Steel 321 Sch 40 ERW Pipe
  • S32100 Stainless Steel Sch 160 ERW Pipe
  • ASME A312 SS 321 2B Finish ERW Pipe
    		•
  • SS 321 Galvanized ERW Pipe
  • Werkstoff Nr. 1.4541 Ba Finish ERW Pipe
  • UNS S32100 Electropolished ERW Pipe
    		•
  • JIS SUS 321 No.4 ERW Pipe
  • EN X6Crniti18-10 No.8 ERW Pipe
    		•
    steel ERW tube
  • ASTM A312 Stainless Steel 321 Sch 40 Tube
  • S32100 Stainless Steel Sch 160 Tube
  • ASME A312 SS 321 2B Finish Tube
    		•
  • SS 321 Galvanized Tube
  • Werkstoff Nr. 1.4541 Ba Finish Tube
  • UNS S32100 Electropolished Tube
    		•
  • JIS SUS 321 No.4 Tube
  • EN X6Crniti18-10 No.8 Tube
    		•
    steel ERW round pipe
  • ASTM A312 Stainless Steel 321 Sch 40 Round Pipe
  • S32100 Stainless Steel Sch 160 Round Pipe
  • ASME A312 SS 321 2B Finish Round Pipe
    		•
  • SS 321 Galvanized Round Pipe
  • Werkstoff Nr. 1.4541 Ba Finish Round Pipe
  • UNS S32100 Electropolished Round Pipe
    		•
  • JIS SUS 321 No.4 Round Pipe
  • EN X6Crniti18-10 No.8 Round Pipe
    		•
    steel ERW square pipes
  • ASTM A312 Stainless Steel 321 Sch 40 Square Pipe
  • S32100 Stainless Steel Sch 160 Square Pipe
  • ASME A312 SS 321 2B Finish Square Pipe
    		•
  • SS 321 Galvanized Square Pipe
  • Werkstoff Nr. 1.4541 Ba Finish Square Pipe
  • UNS S32100 Electropolished Square Pipe
    		•
  • JIS SUS 321 No.4 Square Pipe
  • EN X6Crniti18-10 No.8 Square Pipe
    		•
    steel ERW rectangle pipes
  • ASTM A312 Stainless Steel 321 Sch 40 Rectangle Pipe
  • S32100 Stainless Steel Sch 160 Rectangle Pipe
  • ASME A312 SS 321 2B Finish Rectangle Pipe
    		•
  • SS 321 Galvanized Rectangle Pipe
  • Werkstoff Nr. 1.4541 Ba Finish Rectangle Pipe
  • UNS S32100 Electropolished Rectangle Pipe
    		•
  • JIS SUS 321 No.4 Rectangle Pipe
  • EN X6Crniti18-10 No.8 Rectangle Pipe
    		•
    steel ERW ibr pipes
  • ASTM A312 Stainless Steel 321 Sch 40 IBR Pipe
  • S32100 Stainless Steel Sch 160 IBR Pipe
  • ASME A312 SS 321 2B Finish IBR Pipe
    		•
  • SS 321 Galvanized IBR Pipe
  • Werkstoff Nr. 1.4541 Ba Finish IBR Pipe
  • UNS S32100 Electropolished IBR Pipe
    		•
  • JIS SUS 321 No.4 IBR Pipe
  • EN X6Crniti18-10 No.8 IBR Pipe
    		•
    steel erw fabricated pipes
  • ASTM A312 Stainless Steel 321 Sch 40 Fabricated Pipe
  • S32100 Stainless Steel Sch 160 Fabricated Pipe
  • ASME A312 SS 321 2B Finish Fabricated Pipe
    		•
  • SS 321 Galvanized Fabricated Pipe
  • Werkstoff Nr. 1.4541 Ba Finish Fabricated Pipe
  • UNS S32100 Electropolished Fabricated Pipe
    		•
  • JIS SUS 321 No.4 Fabricated Pipe
  • EN X6Crniti18-10 No.8 Fabricated Pipe
    		•
    steel erw Odd Size Pipe
  • ASTM A312 Stainless Steel 321 Sch 40 Odd Size Pipe
  • S32100 Stainless Steel Sch 160 Odd Size Pipe
  • ASME A312 SS 321 2B Finish Odd Size Pipe
    		•
  • SS 321 Galvanized Odd Size Pipe
  • Werkstoff Nr. 1.4541 Ba Finish Odd Size Pipe
  • UNS S32100 Electropolished Odd Size Pipe
    		•
  • JIS SUS 321 No.4 Odd Size Pipe
  • EN X6Crniti18-10 No.8 Odd Size Pipe
    		•
    steel erw cold drawn Pipe
  • ASTM A312 Stainless Steel 321 Sch 40 Cold Drawn ERW Tubes
  • S32100 Stainless Steel Sch 160 Cold Drawn ERW Tubes
  • ASME A312 SS 321 2B Finish Cold Drawn ERW Tubes
    		•
  • SS 321 Galvanized Cold Drawn ERW Tubes
  • Werkstoff Nr. 1.4541 Ba Finish Cold Drawn ERW Tubes
  • UNS S32100 Electropolished Cold Drawn ERW Tubes
    		•
  • JIS SUS 321 No.4 Cold Drawn ERW Tubes
  • EN X6Crniti18-10 No.8 Cold Drawn ERW Tubes
    		•

    Equivalent Grade :

    STANDARD WERKSTOFF NR. UNS JIS EN
    SS 321 1.4541 S32100 SUS 321 X6CrNiTi18-10

    Chemical Composition :

    Grade   C N Ni Si P S Mn Cr TI
    SS 321 Min - - 9.00 - - - - 17.0 5(C+N)
    max 0.08 0.10 12.00 1.00 0.045 0.030 2.00 19.0 0.70 max

    Dimensions of Stainless Steel 321 ERW Pipes

    Stainless Steel 321 ERW Pipes Weight Chart


    erw pipe dimensions
    NPS Outside Diameter Wall Thickness   Weight Weight
    in mm in mm Sched kg/Mtr Lb/ft
    1/2″ 0.840 21 0.109 2.769 40 STD 1.268 0.851
          0.147 3.734 80 STD 1.621 1.088
    3/4″ 1.050 27 0.113 2.870 40 STD 1.684 1.131
          0.154 3.912 80 STD 2.195 1.474
    1″ 1.315 33 0.133 3.378 40 STD 2.501 1.679
          0.179 4.547 80 STD 3.325 2.172
    1 1/4″ 1.660 42 0.140 3.556 40 STD 3.385 2.273
          0.191 4.851 80 STD 4.464 2.997
    1 1/2″ 1.900 48 0.145 3.683 40 STD 4.048 2.718
          0.200 5.080 80 STD 5.409 3.361
    2″ 2.375 60 0.154 3.912 40 STD 5.441 3.653
          0.218 5.537 80 STD 7.480 5.022
    2 1/2″ 2.875 73 0.203 5.516 40 STD 8.629 5.793
          0.276 7.010 80 STD 11.411 7.661
    3″ 3.500 89 0.216 5.486 40 STD 11.284 7.576
          0.300 7.620 80 STD 15.272 10.253
    4″ 4.500 114 0.237 6.020   16.073 10.790
          0.337 8.560   22.318 14.983
    6″ 6.625 168 0.188 4.775   19.252 12.924
          0.203 5.516   20.739 13.923
          0.219 5.563   22.318 14.983
          0.250 6.350   25.354 17.021
          0.280 7.112 40 STD 58.263 18.974
          0.312 7.925   31.334 21.036
          0.375 9.525   37.285 25.031
          0.432 10.973 80 XHY 42.561 28.573
          0.500 12.700   48.719 32.708
    8″ 8.625 219 0.188 4.775   25.233 16.940
          0.203 5.156   27.198 18.259
          0.219 5.563   29.286 19.661
          0.250 6.350 20 33.308 22.361
          0.277 7.036 30 36.786 24.696
          0.322 8.179 40 42.352 28.554
          0.375 9.525   49.216 33.041
          0.406 10.312 60 53.085 35.638
          0.500 12.700 80 XHY 64.627 43.388
    10″ 10.750 273 0.188 4.775   31.588 21.207
          0.219 5.563   36.689 24.631
          0.250 6.350 20 41.759 28.035
          0.307 7.798 30 51.002 34.240
          0.344 8.738   56.946 38.231
          0.365 9.271 40 STD 63.301 40.483
          0.438 11.125   71.852 48.238
          0.500 12.700 60 XHY 81.530 54.735
          0.594 15.088 80 95.969 64.429
    12″ 12.750 324 0.188 4.775   37.570 25.222
          0.219 5.563   43.657 29.309
          0.250 6.350   49.713 33.375
          0.281 7.137   55.739 37.420
          0.312 7.925   61.735 41.445
          0.375 9.525   73.824 49.562
          0.406 10.312   79.727 53.525
          0.500 12.700   97.438 65.415
          0.562 14.275   108.966 73.154
    14″ 14.000 356 0.188 4.775   41.308 27.732
          0.219 5.563   48.012 32.233
          0.250 6.350 20 54.685 36.713
          0.281 7.137   61.327 41.172
          0.312 7.925   67.939 45.611
          0.375 9.525 STD 81.281 54.568
          0.438 11.125 40 94.498 63.441
          0.500 12.700 XHY 107.381 72.090
          0.625 15.875   132.983 89.278
    16” 16.000 406 0.188 4.775   47.290 21.748
          0.219 5.563   54.980 36.910
          0.250 6.350 10 62.639 42.053
          0.281 7.137   70.268 47.174
          0.312 7.925 20 77.866 52.275
          0.344 8.738   85.677 57.519
          0.375 9.525

    30

    STD

    		 93.213 62.578
          0.438 11.125   108.433 72.797
          0.500 12.700

    40

    XHY

    		 123.289 82.770
    18″ 18.000 457 0.219 5.563   61.948 41.588
          0.250 6.350   70.593 47.393
          0.281 7.137   79.208 53.176
          0.312 7.925 20 87.792 58.939
          0.375 9.525 STD 105.144 70.588
          0.438 11.125 30 122.369 82.152
          0.500 12.700 XHY 139.198 93.450
          0.562 14.275 40 155.904 104.666
          0.625 15.875   172.754 115.978
    20″ 20.000 508 0.250 6.350   78.547 52.733
          0.282 7.163   88.458 59.386
          0.312 7.925   97.719 65.604
          0.375 9.525 20 STD 117.075 78.598
          0.438 11.125   136.305 91.508
          0.500 12.700 30 XHY 155.106 104.130
          0.594 15.088 40 183.378 123.110
          0.625 15.875   192.640 129.328
          0.688 17.475   211.368 141.901
    24″ 24.000 610 0.250 6.350   94.456 63.413
          0.281 7.137   106.029 71.183
          0.312 7.925   117.573 18.932
          0.375 9.525 20 STD 140.938 64.618
          0.438 11.125   164.176 110.219
          0.500 12.700 XHY 186.923 125.490
          0.625 15.875   232.410 156.028
          0.688 17.475 40 255.148 171.293
          0.750 19.050   277.401 186.233
    30″ 30.000 762 0.250 6.350   118.318 79.433
          0.281 7.137   132.851 89.189
          0.312 7.925 10 147.353 98.925
          0.375 9.525 STD 176.731 118.648
          0.438 11.125   205.983 138.286
          0.500 12.700 20 XHY 234.647 157.530
          0.625 15.875 30 292.066 196.078
          0.688 17.475   320.817 215.380
          0.750 19.050   348.988 234.293
    36″ 36.000 914 0.250 6.350   142.180 95.453
          0.281 7.137   159.672 107.196
          0.312 7.925 10 177.133 118.918
          0.375 9.525 STD 215.525 142.678
          0.438 11.125   247.790 166.353
          0.500 12.700 20 XHY 282.372 198.570
          0.625 15.875   351.723 236.128


    0.688

    		 17.475   386.487 259.467


    0.750

    		 19.050   420.576 282.353
    42″ 42.000 1067 0.312 7.925   206.914 138.911
          0.375 9.525 STD 248.319 166.708
          0.500 12.700 XHY 33.097 221.610
          0.750 19.050   492.163 330.413
    48″ 48.000 1219 0.375 9.525 STD 284.112 190.738
          0.438 11.125   331.404 222.487
          0.500 12.700 XHY 377.822 253.650
          0.750 19.050   563.750 378.473
          0.875 22.225   655.969 440.383

    Imperial Dimensions of Stainless Steel 321 ERW Pipes Sizes

    Pipe OD
    mm    		 Pipe WT
    mm    		 in. Sch Kg/m
    13.72 1.65 1/4 10S 0.50
    13.72 2.24 1/4 40S 0.64
    13.72 3.02 1/4 80S 0.81
    17.15 1.65 3/8 10S 0.64
    17.15 2.31 3/8 40S 0.86
    17.15 3.20 3/8 80S 1.12
    21.34 2.11 1/2 10S 1.02
    21.34 2.77 1/2 40S 1.29
    21.34 3.73 1/2 80S 1.65
    26.67 2.11 3/4 10S 1.30
    26.67 2.87 3/4 40S 1.71
    26.67 3.91 3/4 80S 2.23
    33.40 2.77 1 10S 2.13
    33.40 3.38 1 40S 2.54
    33.40 4.55 1 80S 3.29
    33.40 6.352) 1 160 4.30
    42.16 2.77 1¼ 10S 2.73
    42.16 3.56 1¼ 40S 3.44
    42.16 4.85 1¼ 80S 4.53
    42.16 6.352) 1¼ 160 5.69
    48.26 2.77 1½ 10S 3.16
    48.26 3.68 1½ 40S 4.11
    48.26 5.08 1½ 80S 5.49
    60.33 2.77 2 10S 3.99
    60.33 3.91 2 40S 5.52
    60.33 5.54 2 80S 7.60
    60.33 8.742) 2 160 11.29
    73.03 3.05 2½ 10S 5.35
    73.03 5.16 2½ 40S 8.77
    73.03 7.01 2½ 80S 11.59
    88.90 3.05 3 10S 6.56
    88.90 5.49 3 40S 11.47
    88.90 7.62 3 80S 15.51
    88.90 11.132) 3 160 21.67
    101.60 3.05 3½ 10S 7.53
    101.60 5.74 3½ 40S 13.78
    101.60 8.08 3½ 80S 18.92
    114.30 3.05 4 10S 8.50
    114.30 6.02 4 40S 16.32
    114.30 8.56 4 80S 22.67
    114.30 13.492) 4 160 34.05
    141.30 6.55 5 40S 22.10
    141.30 9.53 5 80S 31.44
    141.30 15.882) 5 160 49.87
    168.28 3.4 6 10S 14.04
    168.28 7.11 6 40S 28.69
    168.28 10.97 6 80S 43.21
    168.28 14.27 6 120 54.75
    168.28 18.262) 6 160 68.59
    219.08 8.18 8 40S 43.20
    219.08 12.7 8 80S 65.63
    219.08 18.23 8 120 91.30
    219.08 23.012) 8 160 112.97

    Alloy Stainless Steel 321 ERW Pipes Pressure Rating

    Pipe O.D.
    (In.)    		 Wall Thickness Of Pipe (Inches)
    .028 .035 .049 .065 .083 .095 .109 .120
    Working Pressure (Psig)
    1/8 7900 10100
    1/4 3700 4800 7000 9500
    5/16   3700 5400 7300
    3/8   3100 4400 6100
    1/2   2300 3200 4400
    3/4     2200 3000 4000 4600
    1       2200 2900 3400 3900 4300

    Welded Pipe Wall Thickness

    Types Out diameter Wall thickness Length
    NB Sizes (in stock) 1/8” ~ 8” SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 Upto 6 Meters
    Duplex 2205 ERW Pipe (Custom Sizes) 5.0mm ~ 203.2mm As per requirement Upto 6 Meters
    Duplex 2205 Welded Pipe (in Stock + Custom Sizes) 5.0mm ~ 1219.2mm 1.0 ~ 15.0 mm Upto 6 Meters

    Prices of Stainless Steel 321 ERW Pipes:

    Stainless Steel 321 ERW Pipes
    Stainless Pipe
    6" to 10" Sch 10 , Sch 20
    USD 6.23 Per Kg
    Welded Pipe
    Welded Pipe
    6" to 10" Sch 40 , Sch 80
    USD 6.18 Per Kg
    ERW Pipe
    ERW Pipe
    12" to 20" Sch 10 , Sch 20
    USD 6.83 Per Kg
    Hollow Pipe
    Hollow Pipe
    12" to 20" Sch 40 , Sch 60/80
    USD 6.50 Per Kg

    Stainless Steel 321 ERW Pipes Round Pipe
    Round Pipe
    Sml 1" to 4" Sch 10
    USD 6.91 Per Kg
    22cr Stainless Steel 321 ERW Pipes Square Pipe
    Square Pipe
    Sml 1" to 4" Sch 40
    USD 8.49 Per Kg
    Stainless Steel 321 ERW Pipes stainless steel pipe Rectangular Pipe
    stainless Rectangular Pipe
    Sml 1" to 4" Sch 80
    USD 7.25 Per Kg
    Alloy Stainless Steel 321 ERW Pipes Custom Pipe
    Custom Pipe
    Sml 1" to 4" Sch 160
    USD 7.47 Per Kg

    Cold Drawn Stainless Steel 321 ERW Pipes
    Cold Drawn ERW Pipe
    Sml 6" to 10" Sch 10
    USD 10.92 Per Kg
    Thick Wall Alloy Stainless Steel 321 ERW Pipes
    Thick Wall Pipe
    Sml 6" to 10" Sch 40
    USD 12.66 Per Kg
    Schedule 5S Stainless Steel 321 ERW Pipes
    Schedule 5S Pipe
    SCH 5, 10, 40, 80, 160, XXH
    USD 13.60 Per Kg
    Schedule 40 Stainless Steel 321 ERW Pipes
    Schedule 40 Pipe
    SCH10 (.188), SCH40 (.375)
    USD 11.99 Per Kg

    Stainless Steel 321 ERW Pipes Stainless Steel Polished Pipe
    Stainless Polished Pipe
    SCH-40 (.375)
    USD 15.66 Per Kg
    Stainless Steel 321 ERW Pipes Electropolished Pipe
    Electropolished Pipe
    3 1/2" IPS( 4.000"O. D.)
    USD 13.36 Per Kg
    Stainless Steel 321 ERW Pipes Exhaust Pipe
    Exhaust Pipe
    8 ” IPS(8.625"O. D.)
    USD 14.60 Per Kg
    Thin Wall Stainless Steel 321 ERW Pipes stainless steel pipe Pipe
    Thin Wall stainless steel Pipe
    18" IPS (18.000"O. D.)
    USD 15.06 Per Kg



    Applications :

    These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.

    application of silicon steel

    Packaging Used By Us :

    packaging and uses of silicon steel

    We ship our stainless steel metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. We pack our goods in numerous ways based on the products. We pack our products in multiple ways.


    Testing Used By Us :

    To specify the various physical and mechanical properties of the finished product, various tests, both destructive and nondestructive, are performed. Metallurgical, hardness, hardenability, tension, ductility, compression, fatigue, impact, wear, corrosion, creep, machinability, radiography, magnetic particle, ultrasonic, and eddy current are some of the major tests that are performed by quality control personnel. Metallurgical testing is used to determine the quality of steel by analyzing the microstructure of a sample under a microscope. A cross section of a sample is first highly polished and then examined at a magnification from 100-500 diameters. The microstructure of steel consists of grains of different compositions and sizes.

    Testing Used By Silicon steel
