MA 253 Stainless Steel Flanges, UNS S31254 SS Threaded Flanges

ASTM A182 SMO 254 Threaded Flanges, 254 SMO WNRF Flanges Exporter, SMO 254 Slip On Flanges Supplier in Mumbai, SMO 254 Weld Neck Flange Dealer in India, SMO 254 RTJ Flange, SMO UNS S31254 Pipe Flanges, 150# ANSI SMO 254 Flanges, SMO Werkstoff No 1.4547 Socket Weld Flanges, ANSI B16.5 SMO 254 Orifice Flange, SMO 254 Pipe Flanges, SMO 254 Spectacle Blind Flanges, SMO 254 Nippolet Flanges, SMO 254 Blind Flanges, SMO 254 Nippo Flanges.

Table of Content

What is Stainless Steel MA 253 Flanges

Specification of Stainless Steel MA 253 Flanges

Equivalent Grade of Stainless Steel MA 253 Flanges

Chemical Composition of Stainless Steel MA 253 Flanges

Applications and Uses of Stainless Steel MA 253 Flanges

Packaging of Stainless Steel MA 253 Flanges

Testing of Stainless Steel MA 253 Flanges

People also Search For Stainless Steel MA 253 Flanges

Export Destinations

Domestic Supply

Siliconsteel is a supplier and manufacturer of multiple items necessary for piping. One of the most requested products in our inventory is SMO 254 Flanges. We contribute by offering useful products in Piping Solutions. SMO 254 is a stainless steel austenitic material which has various advantageous characteristics. Flanges are made using the highest quality material. SMO 254 Flanges in different shapes, sizes, components, and specifications are available.

Our Stainless Steel 254 SMO Flanges are available in a comprehensive variety. We produce precisely matching flanges according to domestic and international specifications and quality requirements. The SMO 254 contains high-performance nitrogen and molybdenum in every use. We also provide our customers with correct flanges with custom-made requirements. These flanges SMO 254 are ideal for marine use.

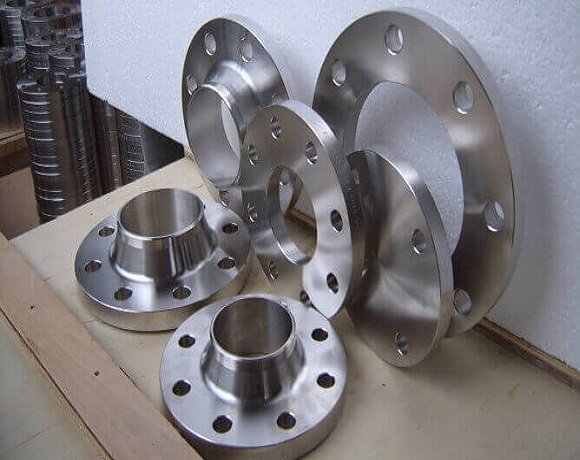

stainless steel 253 ma flanges supplier stockist

SMO 254 Socket Weld Flange, 6Mo Plate Flanges, ASTM A182 SMO 254 Pipe Flanges, smo 254 plate flanges price, 254 Stainless Steel Lap Joint Flanges, SMO 254 SORF Flanges,smo 254 flanges suppliers, smo 254 flanges price in Mumbai, smo 254 flanges cost, Stainless Steel 254 Spectacle Blind Flanges, astm A182 smo 254 flanges price list in india, 6moly flanges price, SMO 254 Threaded Flanges, SMO 254 Flanges Manufacturers in India.

These flanges have excellent properties that allow them to perform well in chemical environments. The flanges have superior resistance. Additional molybdenum offers excellent cracking resistance and cracking corrosion. In contrast to other versions of stainless steel, we offer an SMO 254 flanges. We use Austenitic Stainless-Steel for the production of these flanges to be the most excellent quality. This improves characteristics such as durability, strength, high tensile strength, and superior performance.

Our high-quality SMO 254 flanges are well made, machined, formable, and weldable. Siliconsteel produces these flanges in bulk without losing quality. We can provide our esteemed customers with the latest technology, state-of-the-art machinery, and established processes for flanges production. We always deliver quality in all products as we are a customer-focused manufacturing company.

Specification :

Specifications	ASTM A182 / ASME SA182, ASTM A240 / ASME SA240
Dimensions	ANSI / ASME B16.5, B16.47 Series A & B, B.16.48, BS4504, BS10, DIN, EN-1092, MSS SP44
Size	1/2" - 48"
Class / Pressure Rating	150 Class, 300 Class, F92 Class, 900 Class, 1500 Class, 2500 Class, PN6, PN10, PN16, PN25, PN40, PN64, etc.
Form	Slip on Flanges (SORF), Threaded Flanges, Weld neck Flanges (WNRF), Blind Flanges, Socket weld Flanges, Lap Joint Flanges, Ring Type Joint Flanges, Spectacle Blind Flanges, Spacer Ring Flanges, Long weld Neck Flanges, Nipo Flange, Nipolet Flanges, Plate Flanges, Flat Flange, Orifice Flanges, Forged Flanges
Flange Face Type	Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging etc
Condition	Flat Face (FF), Raised Face (RF), Ring Type Joint(RTJ)

Types of Stainless Steel 253MA Flanges :

ASTM A182 Stainless Steel 253MA Blind Flanges S30815 Stainless Steel 253MA class 300# Blind Flanges	SS 253MA class 150# Blind Flanges SS 2368 Blind Flanges UNS S30815 Blind Flanges	Werkstoff Nr. 1.4835 Blind Flanges X9CrNiSiNCe21-11-2 Blind Flanges
ASTM A182 Stainless Steel 253MA BLRF Flanges S30815 Stainless Steel 253MA class 300# BLRF Flanges	SS 253MA class 150# BLRF Flanges SS 2368 BLRF Flanges UNS S30815 BLRF Flanges	Werkstoff Nr. 1.4835 BLRF Flanges X9CrNiSiNCe21-11-2 BLRF Flanges
ASTM A182 Stainless Steel 253MA Flat Flanges S30815 Stainless Steel 253MA class 300# Flat Flanges	SS 253MA class 150# Flat Flanges SS 2368 Flat Flanges UNS S30815 Flat Flanges	Werkstoff Nr. 1.4835 Flat Flanges X9CrNiSiNCe21-11-2 Flat Flanges
ASTM A182 Stainless Steel 253MA Lap-joint Flanges S30815 Stainless Steel 253MA class 300# Lap-joint Flanges	SS 253MA class 150# Lap-joint Flanges SS 2368 Lap-joint Flanges UNS S30815 Lap-joint Flanges	Werkstoff Nr. 1.4835 Lap-joint Flanges X9CrNiSiNCe21-11-2 Lap-joint Flanges
ASTM A182 Stainless Steel 253MA Nipolet Flanges S30815 Stainless Steel 253MA class 300# Nipolet Flanges	SS 253MA class 150# Nipolet Flanges SS 2368 Nipolet Flanges UNS S30815 Nipolet Flanges	Werkstoff Nr. 1.4835 Nipolet Flanges X9CrNiSiNCe21-11-2 Nipolet Flanges
ASTM A182 Stainless Steel 253MA Reducing Flanges S30815 Stainless Steel 253MA class 300# Reducing Flanges	SS 253MA class 150# Reducing Flanges SS 2368 Reducing Flanges UNS S30815 Reducing Flanges	Werkstoff Nr. 1.4835 Reducing Flanges X9CrNiSiNCe21-11-2 Reducing Flanges
ASTM A182 Stainless Steel 253MA SORF Flanges S30815 Stainless Steel 253MA class 300# SORF Flanges	SS 253MA class 150# SORF Flanges SS 2368 SORF Flanges UNS S30815 SORF Flanges	Werkstoff Nr. 1.4835 SORF Flanges X9CrNiSiNCe21-11-2 SORF Flanges
ASTM A182 Stainless Steel 253MA Spacer Ring Flanges S30815 Stainless Steel 253MA class 300# Spacer Ring Flanges	SS 253MA class 150# Spacer Ring Flanges SS 2368 Spacer Ring Flanges UNS S30815 Spacer Ring Flanges	Werkstoff Nr. 1.4835 Spacer Ring Flanges X9CrNiSiNCe21-11-2 Spacer Ring Flanges
ASTM A182 Stainless Steel 253MA SWRF Flanges S30815 Stainless Steel 253MA class 300# SWRF Flanges	SS 253MA class 150# SWRF Flanges SS 2368 SWRF Flanges UNS S30815 SWRF Flanges	Werkstoff Nr. 1.4835 SWRF Flanges X9CrNiSiNCe21-11-2 SWRF Flanges
ASTM A182 Stainless Steel 253MA Spectacle Flanges S30815 Stainless Steel 253MA class 300# Spectacle Flanges	SS 253MA class 150# Spectacle Flanges SS 2368 Spectacle Flanges UNS S30815 Spectacle Flanges	Werkstoff Nr. 1.4835 Spectacle Flanges X9CrNiSiNCe21-11-2 Spectacle Flanges
ASTM A182 Stainless Steel 253MA WNRF Flanges S30815 Stainless Steel 253MA class 300# WNRF Flanges	SS 253MA class 150# WNRF Flanges SS 2368 WNRF Flanges UNS S30815 WNRF Flanges	Werkstoff Nr. 1.4835 WNRF Flanges X9CrNiSiNCe21-11-2 WNRF Flanges
ASTM A182 Stainless Steel 253MA Weldo Flanges S30815 Stainless Steel 253MA class 300# Weldo Flanges	SS 253MA class 150# Weldo Flanges SS 2368 Weldo Flanges UNS S30815 Weldo Flanges	Werkstoff Nr. 1.4835 Weldo Flanges X9CrNiSiNCe21-11-2 Weldo Flanges

Equivalent Grade :

STANDARD	WERKSTOFF NR.	UNS
Stainless Steel 253MA	1.4835	S30815

Chemical Composition :

Grade	C	Mn	Si	S	Fe	Ni	Cr	P	Ce
Stainless Steel 253MA	0.05-0.10 max	0.80 max	1.40-2.00	0.030 max	Balance	10.0-12.0	20.0-22.0	0.040 max	0.03-0.08

Dimensions of Stainless Steel 253MA Flanges

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. of Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
¹⁄₂	3.50	0.38	1.38	4	0.62	2.38	0.88	0.62	1.19	0.84	0.56	1.81
³⁄₄	3.88	0.44	1.69	4	0.62	2.75	1.09	0.82	1.50	1.05	0.56	2.00
1	4.25	0.50	2.00	4	0.62	3.12	1.36	1.05	1.94	1.32	0.62	2.12
1¹⁄₄	4.62	0.56	2.50	4	0.62	3.50	1.70	1.38	2.31	1.66	0.75	2.19
1¹⁄₂	5.00	0.62	2.88	4	0.62	3.88	1.95	1.61	2.56	1.90	0.81	2.38
2	6.00	0.69	3.62	4	0.75	4.75	2.44	2.07	3.06	2.38	0.94	2.44
2¹⁄₂	7.00	0.81	4.12	4	0.75	5.50	2.94	2.47	3.56	2.88	1.06	2.69
3	7.50	0.88	5.00	4	0.75	6.00	3.57	3.07	4.25	3.50	1.12	2.69
3¹⁄₂	8.50	0.88	5.50	8	0.75	7.00	4.07	3.55	4.81	4.00	1.19	2.75
4	9.00	0.88	6.19	8	0.75	7.50	4.57	4.03	5.31	4.50	1.25	2.94
5	10.00	0.88	7.31	8	0.88	8.50	5.66	5.05	6.44	5.56	1.38	3.44
6	11.00	0.94	8.50	8	0.88	9.50	6.72	6.07	7.56	6.63	1.50	3.44
8	13.50	1.06	10.62	8	0.88	11.75	8.72	7.98	9.69	8.63	1.69	3.94
10	16.00	1.12	12.75	12	1.00	14.25	10.88	10.02	12.00	10.75	1.88	3.94
12	19.00	1.19	15.00	12	1.00	17.00	12.88	12.00	14.38	12.75	2.12	4.44
14	21.00	1.31	16.25	12	1.12	18.75	14.14	13.25	15.75	14.00	2.19	4.94
16	23.50	1.38	18.50	16	1.12	21.25	16.16	15.25	18.00	16.00	2.44	4.94
18	25.00	1.50	21.00	16	1.25	22.75	18.18	17.25	19.88	18.00	2.62	5.44
20	27.50	1.62	23.00	20	1.25	25.00	20.20	19.25	22.00	20.00	2.81	5.62
22	29.50	1.75	25.25	20	1.38	27.25	22.22	21.25	24.25	22.00	3.07	5.82
24	32.00	1.81	27.25	20	1.38	29.50	24.25	23.25	26.12	24.00	3.19	5.94

Weight Chart of Stainless Steel 253MA Flanges :

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087	PN14	95	67	4	M12	14
AS 2129	Table C	95	67	4	13	14
	Table D	95	67	4	13	14
	Table E	95	67	4	13	14
	Table F	95	67	4	13	14
	Table H	114	83	4	16	17
	Table J	114	83	4	16	17
ANSI B16.5	ANSI 150	89	60	4	13	16
	ANSI 300	95	67	4	13	16
	ANSI 600	95	67	4	13	16
	ANSI 900	121	83	4	19	22
	ANSI 1500	121	83	4	19	22
ISO 7005 (DIN)	PN6	80	55	4	M10	11
	PN10	95	65	4	M12	14
	PN16	95	65	4	M12	14
	PN20	90	60.5	4	M14	16
	PN25	95	65	4	M12	14
	PN40	95	65	4	M12	14

Duplex Stainless Steel Flange Pressure Rating :

Temp. ℃	Pressure-temperature rating for ASME B16.47 by class, bar
Temp. ℃	75	150	300	400	600	900
-29 to 38	10.0	20.0	51.7	68.9	103.4	155.1
50	9.8	19.5	51.7	68.9	103.4	155.1
100	8.8	17.7	50.7	67.5	101.3	152.0
150	7.9	15.8	45.9	61.2	91.9	137.8
200	6.9	13.8	42.7	56.9	85.3	128.0
250	6.0	12.1	40.5	53.9	80.9	121.4
300	5.1	10.2	38.9	51.8	77.7	116.6

Temp, ℃	Pressure-temperature rating for ASME B16.5 by class, bar
Temp, ℃	150	300	400	600	900	1500	2500
-29 to 38	20.0	51.7	68.9	103.4	155.1	258.6	430.9
50	19.5	51.7	68.9	103.4	155.1	258.6	430.9
100	17.7	50.7	67.5	101.3	152.0	253.3	422.2
150	15.8	45.9	61.2	91.9	137.8	229.6	382.7
200	13.8	42.7	56.9	85.3	128.0	213.3	355.4
250	12.1	40.5	53.9	80.9	121.4	202.3	337.2
300	10.2	38.9	51.8	77.7	116.6	194.3	323.8

Tolerance of Duplex Ss Flanges

Outside Diameter ≤ 24 = 1.6 mm \| > 24 = ± 3.2 mm	Inside Diameter not applicable
Diameter of Contact Face 1.6 mm Raised Face = ± 0.8 mm 6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm	Outside Diameter of Hub ≤ 12 = + 2.4 mm / – 1.6 mm \| ≥ 14 = ± 3.2 mm
Diameter of Counterbore not applicable	Drilling Bolt Circle = 1.6 mm \| Bolt Hole Spacing = ± 0.8 mm Eccentricity of Bolt Circle with Respect to Facing ≤ 2½ = 0.8 mm max. \| ≥ 3 = 1.6 mm max.
Thickness ≤ 18 = + 3.2 mm / – 0 \| ≥ 20 = + 4.8 mm / – 0	Length thru Hub ≤ 18 = + 3.2 mm / – 0.8 mm \| ≥ 20 = + 4.8 mm / – 1.6 mm

Prices of Stainless Steel 253MA Flanges :

Plate Flange
US $ 5.58-5.88 / kg

Ring Joint Flange
US $ 0.5-20 / Piece

Tongue & Groove Flanges
US $ 5.06-6.39 / Piece

Reducing Flanges
US $ 1 - 3 / Piece

Threaded Flange
US $ 0.2-20 / Piece

Lap Joint Flange
US $ 1000 - 3000 / Ton

Long WN Flange
US $ 5 - 10 / Piece

Spectacle Blind Flange
US $ 1 - 7 / Piece

Slip On Flange
US $ 5 - 12 / Piece

Socket Weld Flange
US $0.5-1000 / Piece

Blind Flange
US $300-500 / Ton

Welding Neck Flange
US $1-900 / Piece

Raised Face Flange
US $0.5-1000 / Piece

Male & Female Flange
US $1-300 / Piece

Weldoflange
US $ 5.58-5.88 / kg

Puddle Flanges
US $ 0.5-20 / Piece

Spacer Flange
US $ 5.06-6.39 / Piece

High Hub Blind Flange
US $ 5 - 10 / Piece

Forged Flange
US $300-500 / Ton

Bleed Rings
US $0.5-1000 / Piece

Orifice Flange
US $ 0.2-20 / Piece

Square Flange
US $ 5 - 10 / Piece

Nipo flange
US $ 1000 - 3000 / Ton

Spade Flange
US $300-500 / Ton

Applications :

These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.

Packaging Used By Us :

We ship our stainless steel metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. We pack our goods in numerous ways based on the products. We pack our products in multiple ways.

Testing Used By Us :

To specify the various physical and mechanical properties of the finished product, various tests, both destructive and nondestructive, are performed. Metallurgical, hardness, hardenability, tension, ductility, compression, fatigue, impact, wear, corrosion, creep, machinability, radiography, magnetic particle, ultrasonic, and eddy current are some of the major tests that are performed by quality control personnel. Metallurgical testing is used to determine the quality of steel by analyzing the microstructure of a sample under a microscope. A cross section of a sample is first highly polished and then examined at a magnification from 100-500 diameters. The microstructure of steel consists of grains of different compositions and sizes.
