Siliconsteel is one of the leading Stainless Steel 316l Flanges manufacturers and suppliers. We supply both ferrous and non-ferrous flanges throughout the globe. All types of standard Stainless-Steel flanges are made. Flanges from 316L Stainless Steel are one of the industry's most common flanges. We produce flanges that meet all industrial applications' requirements. We produce our flanges according to all international and quality requirements. Flanges of 317L Stainless Steel can be produced at different levels, requirements, sizes, and grades. We offer custom flanges that are well suited to our clients.

Stainless Steel 316L is a low-carbon molybdenum alloy of the Austenitic steel category. This alloy has a higher chromium content, nickel, which offers corrosion resistance. This grade has outstanding resistance to chemical attacks, including formic acids, acetic acids, citric acids, sulfuric acids, and other hard acids. This classification has a strong resistance to chemical attacks. The low carbon content also offers sensitization tolerance.

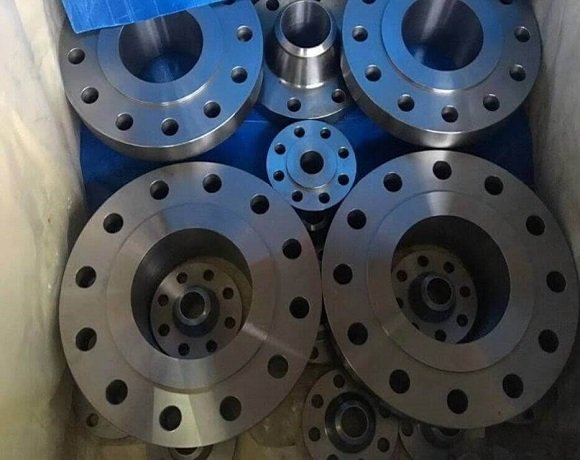

stainless steel 316l flanges supplier stockist

UNS S31603 Plate Flange, SS 316L Welding Neck Flange Leading Stockholder in Mumbai India, SS S31603 Tongue and Groove Flange in India, Stainless Steel 316L Flanges, Stainless Steel 1.4435 Ring Type Joint Flange, Stainless Steel 316L Flanges Manufacturers, SUS 316L Reducing Flange, SS 1.4404 Screwed Flange, Stainless Steel 316L Flanges Exporters, Stainless Steel S31603 Long Weld Neck Flange, 316L Stainless Steel Spectacle Blind Flange, Stainless Steel F316L Blind Flanges, Stainless Steel 316L Flanges Suppliers, Stainless Steel DIN 1.4435 Flanges, 316L Stainless Steel Threaded Flanges, SS S31603 Forged Flanges, SS 1.4404 Socket weld Flanges, ASME SA182 F316L Stainless Steel Flanges.

To manufacture these flanges, we use the latest technology. This enables us to supply flanges in bulk without affecting the price. Our SS 316L high-grade flanges have excellent corrosion resistance, pitting corrosion, intergranular corrosion, and extremely tensile. Our SS 316L Flanges are suitable for use in the manufacturing of chemical applications. Such flanges are suitable for many essential applications in harsh environmental conditions.

We upgrade our plant to ensure that our flanges are the most reliable and durable. We can manufacture compatible goods through our high-tech manufacturing company. We ensure that our respected customers are provided perfectly appropriate goods under our experts' guidance and inspections. We produce every order in a defined period and at affordable rates, with proper packaging, best shipping, excellent finishing, correct documents.

Specification :

Specifications	ASTM A182 / ASME SA182, ASTM A240 / ASME SA240
Dimensions	ANSI / ASME B16.5, B16.47 Series A & B, B.16.48, BS4504, BS10, DIN, EN-1092, MSS SP44
Size	1/2" - 48"
Class / Pressure Rating	150 Class, 300 Class, F92 Class, 900 Class, 1500 Class, 2500 Class, PN6, PN10, PN16, PN25, PN40, PN64, etc.
Form	Slip on Flanges (SORF), Threaded Flanges, Weld neck Flanges (WNRF), Blind Flanges, Socket weld Flanges, Lap Joint Flanges, Ring Type Joint Flanges, Spectacle Blind Flanges, Spacer Ring Flanges, Long weld Neck Flanges, Nipo Flange, Nipolet Flanges, Plate Flanges, Flat Flange, Orifice Flanges, Forged Flanges
Flange Face Type	Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging etc
Condition	Flat Face (FF), Raised Face (RF), Ring Type Joint(RTJ)

Types of Stainless Steel 316L Flanges :

ASTM A182 Stainless Steel 316L Blind Flanges S31603 Stainless Steel class 300# Blind Flanges SS 316L class 150# Blind Flanges	Werkstoff Nr. 1.4404 Blind Flanges UNS S31603 Blind Flanges JIS SUS 316L Blind Flanges	BS 316S11 Blind Flanges Gost 03Ch17N14M3 Blind Flanges Afnor Z3Cnd17‐11‐02 Blind Flanges EN X2Crnimo17-12-2 Blind Flanges
ASTM A182 Stainless Steel 316L BLRF Flanges S31603 Stainless Steel class 300# BLRF Flanges SS 316L class 150# BLRF Flanges	Werkstoff Nr. 1.4404 BLRF Flanges UNS S31603 BLRF Flanges JIS SUS 316L BLRF Flanges	BS 316S11 BLRF Flanges Gost 03Ch17N14M3 BLRF Flanges Afnor Z3Cnd17‐11‐02 BLRF Flanges EN X2Crnimo17-12-2 BLRF Flanges
ASTM A182 Stainless Steel 316L Flat Flanges S31603 Stainless Steel class 300# Flat Flanges SS 316L class 150# Flat Flanges	Werkstoff Nr. 1.4404 Flat Flanges UNS S31603 Flat Flanges JIS SUS 316L Flat Flanges	BS 316S11 Flat Flanges Gost 03Ch17N14M3 Flat Flanges Afnor Z3Cnd17‐11‐02 Flat Flanges EN X2Crnimo17-12-2 Flat Flanges
ASTM A182 Stainless Steel 316L Lap-joint Flanges S31603 Stainless Steel class 300# Lap-joint Flanges SS 316L class 150# Lap-joint Flanges	Werkstoff Nr. 1.4404 Lap-joint Flanges UNS S31603 Lap-joint Flanges JIS SUS 316L Lap-joint Flanges	BS 316S11 Lap-joint Flanges Gost 03Ch17N14M3 Lap-joint Flanges Afnor Z3Cnd17‐11‐02 Lap-joint Flanges EN X2Crnimo17-12-2 Lap-joint Flanges
ASTM A182 Stainless Steel 316L Nipolet Flanges S31603 Stainless Steel class 300# Nipolet Flanges SS 316L class 150# Nipolet Flanges	Werkstoff Nr. 1.4404 Nipolet Flanges UNS S31603 Nipolet Flanges JIS SUS 316L Nipolet Flanges	BS 316S11 Nipolet Flanges Gost 03Ch17N14M3 Nipolet Flanges Afnor Z3Cnd17‐11‐02 Nipolet Flanges EN X2Crnimo17-12-2 Nipolet Flanges
ASTM A182 Stainless Steel 316L Reducing Flanges S31603 Stainless Steel class 300# Reducing Flanges SS 316L class 150# Reducing Flanges	Werkstoff Nr. 1.4404 Reducing Flanges UNS S31603 Reducing Flanges JIS SUS 316L Reducing Flanges	BS 316S11 Reducing Flanges Gost 03Ch17N14M3 Reducing Flanges Afnor Z3Cnd17‐11‐02 Reducing Flanges EN X2Crnimo17-12-2 Reducing Flanges
ASTM A182 Stainless Steel 316L SORF Flanges S31603 Stainless Steel class 300# SORF Flanges SS 316L class 150# SORF Flanges	Werkstoff Nr. 1.4404 SORF Flanges UNS S31603 SORF Flanges JIS SUS 316L SORF Flanges	BS 316S11 SORF Flanges Gost 03Ch17N14M3 SORF Flanges Afnor Z3Cnd17‐11‐02 SORF Flanges EN X2Crnimo17-12-2 SORF Flanges
ASTM A182 Stainless Steel 316L Spacer Ring Flanges S31603 Stainless Steel class 300# Spacer Ring Flanges SS 316L class 150# Spacer Ring Flanges	Werkstoff Nr. 1.4404 Spacer Ring Flanges UNS S31603 Spacer Ring Flanges JIS SUS 316L Spacer Ring Flanges	BS 316S11 Spacer Ring Flanges Gost 03Ch17N14M3 Spacer Ring Flanges Afnor Z3Cnd17‐11‐02 Spacer Ring Flanges EN X2Crnimo17-12-2 Spacer Ring Flanges
ASTM A182 Stainless Steel 316L SWRF Flanges S31603 Stainless Steel class 300# SWRF Flanges SS 316L class 150# SWRF Flanges	Werkstoff Nr. 1.4404 SWRF Flanges UNS S31603 SWRF Flanges JIS SUS 316L SWRF Flanges	BS 316S11 SWRF Flanges Gost 03Ch17N14M3 SWRF Flanges Afnor Z3Cnd17‐11‐02 SWRF Flanges EN X2Crnimo17-12-2 SWRF Flanges
ASTM A182 Stainless Steel 316L Spectacle Flanges S31603 Stainless Steel class 300# Spectacle Flanges SS 316L class 150# Spectacle Flanges	Werkstoff Nr. 1.4404 Spectacle Flanges UNS S31603 Spectacle Flanges JIS SUS 316L Spectacle Flanges	BS 316S11 Spectacle Flanges Gost 03Ch17N14M3 Spectacle Flanges Afnor Z3Cnd17‐11‐02 Spectacle Flanges EN X2Crnimo17-12-2 Spectacle Flanges
ASTM A182 Stainless Steel 316L WNRF Flanges S31603 Stainless Steel class 300# WNRF Flanges SS 316L class 150# WNRF Flanges	Werkstoff Nr. 1.4404 WNRF Flanges UNS S31603 WNRF Flanges JIS SUS 316L WNRF Flanges	BS 316S11 WNRF Flanges Gost 03Ch17N14M3 WNRF Flanges Afnor Z3Cnd17‐11‐02 WNRF Flanges EN X2Crnimo17-12-2 WNRF Flanges
ASTM A182 Stainless Steel 316L Weldo Flanges S31603 Stainless Steel class 300# Weldo Flanges SS 316L class 150# Weldo Flanges	Werkstoff Nr. 1.4404 Weldo Flanges UNS S31603 Weldo Flanges JIS SUS 316L Weldo Flanges	BS 316S11 Weldo Flanges Gost 03Ch17N14M3 Weldo Flanges Afnor Z3Cnd17‐11‐02 Weldo Flanges EN X2Crnimo17-12-2 Weldo Flanges

Equivalent Grade :

Grade	UNS No	Old British		Euronorm		Swedish SS	Japanese JIS
		BS	En	No	Name
316L	S31603	304S11	58E	1.4436	X3CrNiMo17-13-3	2348	SUS 316L

Chemical Composition :

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
316L	min.	–	–	–	–	–	16.0	2.0	10.0	–
316L	max.	0.08	2.0	0.75	0.045	0.03	18.0	3.0	14.0	0.10

Dimensions of Stainless Steel 316L Flanges

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. of Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
¹⁄₂	3.50	0.38	1.38	4	0.62	2.38	0.88	0.62	1.19	0.84	0.56	1.81
³⁄₄	3.88	0.44	1.69	4	0.62	2.75	1.09	0.82	1.50	1.05	0.56	2.00
1	4.25	0.50	2.00	4	0.62	3.12	1.36	1.05	1.94	1.32	0.62	2.12
1¹⁄₄	4.62	0.56	2.50	4	0.62	3.50	1.70	1.38	2.31	1.66	0.75	2.19
1¹⁄₂	5.00	0.62	2.88	4	0.62	3.88	1.95	1.61	2.56	1.90	0.81	2.38
2	6.00	0.69	3.62	4	0.75	4.75	2.44	2.07	3.06	2.38	0.94	2.44
2¹⁄₂	7.00	0.81	4.12	4	0.75	5.50	2.94	2.47	3.56	2.88	1.06	2.69
3	7.50	0.88	5.00	4	0.75	6.00	3.57	3.07	4.25	3.50	1.12	2.69
3¹⁄₂	8.50	0.88	5.50	8	0.75	7.00	4.07	3.55	4.81	4.00	1.19	2.75
4	9.00	0.88	6.19	8	0.75	7.50	4.57	4.03	5.31	4.50	1.25	2.94
5	10.00	0.88	7.31	8	0.88	8.50	5.66	5.05	6.44	5.56	1.38	3.44
6	11.00	0.94	8.50	8	0.88	9.50	6.72	6.07	7.56	6.63	1.50	3.44
8	13.50	1.06	10.62	8	0.88	11.75	8.72	7.98	9.69	8.63	1.69	3.94
10	16.00	1.12	12.75	12	1.00	14.25	10.88	10.02	12.00	10.75	1.88	3.94
12	19.00	1.19	15.00	12	1.00	17.00	12.88	12.00	14.38	12.75	2.12	4.44
14	21.00	1.31	16.25	12	1.12	18.75	14.14	13.25	15.75	14.00	2.19	4.94
16	23.50	1.38	18.50	16	1.12	21.25	16.16	15.25	18.00	16.00	2.44	4.94
18	25.00	1.50	21.00	16	1.25	22.75	18.18	17.25	19.88	18.00	2.62	5.44
20	27.50	1.62	23.00	20	1.25	25.00	20.20	19.25	22.00	20.00	2.81	5.62
22	29.50	1.75	25.25	20	1.38	27.25	22.22	21.25	24.25	22.00	3.07	5.82
24	32.00	1.81	27.25	20	1.38	29.50	24.25	23.25	26.12	24.00	3.19	5.94

Weight Chart of Stainless Steel 316L Flanges :

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087	PN14	95	67	4	M12	14
AS 2129	Table C	95	67	4	13	14
	Table D	95	67	4	13	14
	Table E	95	67	4	13	14
	Table F	95	67	4	13	14
	Table H	114	83	4	16	17
	Table J	114	83	4	16	17
ANSI B16.5	ANSI 150	89	60	4	13	16
	ANSI 300	95	67	4	13	16
	ANSI 600	95	67	4	13	16
	ANSI 900	121	83	4	19	22
	ANSI 1500	121	83	4	19	22
ISO 7005 (DIN)	PN6	80	55	4	M10	11
	PN10	95	65	4	M12	14
	PN16	95	65	4	M12	14
	PN20	90	60.5	4	M14	16
	PN25	95	65	4	M12	14
	PN40	95	65	4	M12	14

Duplex Stainless Steel Flange Pressure Rating :

Temp. ℃	Pressure-temperature rating for ASME B16.47 by class, bar
Temp. ℃	75	150	300	400	600	900
-29 to 38	10.0	20.0	51.7	68.9	103.4	155.1
50	9.8	19.5	51.7	68.9	103.4	155.1
100	8.8	17.7	50.7	67.5	101.3	152.0
150	7.9	15.8	45.9	61.2	91.9	137.8
200	6.9	13.8	42.7	56.9	85.3	128.0
250	6.0	12.1	40.5	53.9	80.9	121.4
300	5.1	10.2	38.9	51.8	77.7	116.6

Temp, ℃	Pressure-temperature rating for ASME B16.5 by class, bar
Temp, ℃	150	300	400	600	900	1500	2500
-29 to 38	20.0	51.7	68.9	103.4	155.1	258.6	430.9
50	19.5	51.7	68.9	103.4	155.1	258.6	430.9
100	17.7	50.7	67.5	101.3	152.0	253.3	422.2
150	15.8	45.9	61.2	91.9	137.8	229.6	382.7
200	13.8	42.7	56.9	85.3	128.0	213.3	355.4
250	12.1	40.5	53.9	80.9	121.4	202.3	337.2
300	10.2	38.9	51.8	77.7	116.6	194.3	323.8

Tolerance of Duplex Ss Flanges

Outside Diameter ≤ 24 = 1.6 mm \| > 24 = ± 3.2 mm	Inside Diameter not applicable
Diameter of Contact Face 1.6 mm Raised Face = ± 0.8 mm 6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm	Outside Diameter of Hub ≤ 12 = + 2.4 mm / – 1.6 mm \| ≥ 14 = ± 3.2 mm
Diameter of Counterbore not applicable	Drilling Bolt Circle = 1.6 mm \| Bolt Hole Spacing = ± 0.8 mm Eccentricity of Bolt Circle with Respect to Facing ≤ 2½ = 0.8 mm max. \| ≥ 3 = 1.6 mm max.
Thickness ≤ 18 = + 3.2 mm / – 0 \| ≥ 20 = + 4.8 mm / – 0	Length thru Hub ≤ 18 = + 3.2 mm / – 0.8 mm \| ≥ 20 = + 4.8 mm / – 1.6 mm

Prices of Stainless Steel 316L Flanges :

Plate Flange
US $ 5.58-5.88 / kg

Ring Joint Flange
US $ 0.5-20 / Piece

Tongue & Groove Flanges
US $ 5.06-6.39 / Piece

Reducing Flanges
US $ 1 - 3 / Piece

Threaded Flange
US $ 0.2-20 / Piece

Lap Joint Flange
US $ 1000 - 3000 / Ton

Long WN Flange
US $ 5 - 10 / Piece

Spectacle Blind Flange
US $ 1 - 7 / Piece

Slip On Flange
US $ 5 - 12 / Piece

Socket Weld Flange
US $0.5-1000 / Piece

Blind Flange
US $300-500 / Ton

Welding Neck Flange
US $1-900 / Piece

Raised Face Flange
US $0.5-1000 / Piece

Male & Female Flange
US $1-300 / Piece

Weldoflange
US $ 5.58-5.88 / kg

Puddle Flanges
US $ 0.5-20 / Piece

Spacer Flange
US $ 5.06-6.39 / Piece

High Hub Blind Flange
US $ 5 - 10 / Piece

Forged Flange
US $300-500 / Ton

Bleed Rings
US $0.5-1000 / Piece

Orifice Flange
US $ 0.2-20 / Piece

Square Flange
US $ 5 - 10 / Piece

Nipo flange
US $ 1000 - 3000 / Ton

Spade Flange
US $300-500 / Ton

Applications :

These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.

Packaging Used By Us :

We ship our stainless steel metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. We pack our goods in numerous ways based on the products. We pack our products in multiple ways.

Testing Used By Us :

To specify the various physical and mechanical properties of the finished product, various tests, both destructive and nondestructive, are performed. Metallurgical, hardness, hardenability, tension, ductility, compression, fatigue, impact, wear, corrosion, creep, machinability, radiography, magnetic particle, ultrasonic, and eddy current are some of the major tests that are performed by quality control personnel. Metallurgical testing is used to determine the quality of steel by analyzing the microstructure of a sample under a microscope. A cross section of a sample is first highly polished and then examined at a magnification from 100-500 diameters. The microstructure of steel consists of grains of different compositions and sizes.
