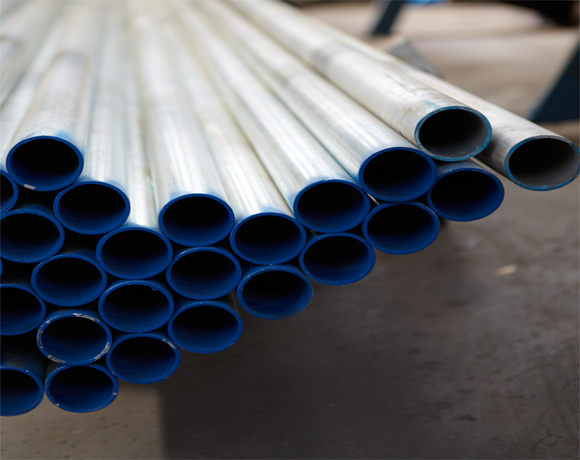

Silicon Steels is the leading manufacturer and the most popular supplier and manufacturer of Stainless Steel 321 Seamless Pipes. The more traditional austenitic stainless steel grade is prone to chromium carbide precipitation at a temperature between 800 ° and 1500 ° F, compared to 321 Stainless Steel Welded Pipes with greater creeping strength and stress breaking. The 321 Stainless Steel Tube was engineered to resist intergranular corrosion, in particular in high temperature environments. The Stainless Steel 321 Welded Pipes also has excellent strength characteristics at lower temperatures.
These quality properties of 321H pipes in the engineering, chemicals, sugar and pharmaceutical industries are used in long term. The 321H pipes are the superior carbon variant of the SS 321 pipes which is generally referred to as the SS UNS S32100 Seamless Tubes for having a high temperature resistance. SS 321 Pipes can be supplied to meet your specific piping specifications in cuts to lenght sizes and as well as machined or manufactured. SS 321 Hot Finished Tubes in Stainless Steel comes with titanium, which together adds carbon content at least five times. In the jet aircraft, petroleum refineries, diesel and heavy duty auto exhaust systems and high-temperature chemical process machines, Stainless Steel 321 Pipes can be used. 321 Stainless Steel Tube titanium element makes them stronger against the formation of chromium carbide. 321 Stainless Steel Seamless Tube also has good toughness and is non-magnetic in the annealed condition.
Stainless Steel DIN 1.4541 Pipe stabilizes without harmful carbide precipitation to allow for use within a range of 400-1500 ° F (426-815 ° C). Stainless Steel 321 Round Pipes have enhanced resistance to intergranular corrosion while SS 321 pipes have excellent consistency in carbide precipitation range for high-temperature operation. We maintain a wide stock of SS UNS S32100 Seamless Tubes, SS JIS SUS 321 Pipe, SS DIN 1.4541 Rectangular Welded Pipes, Stainless Steel ASTM A213 321 Welded Tube, SS 321 Hallow Pipe Suppliers.
Specifications | ASTM A312 / ASME SA312 |
Seamless Pipes & Tubes Sizes | 1 / 2" NB - 8" NB |
Welded Pipes & Tubes Sizes | 6" NB - 24" NB |
Outer Diameter | 6.0-630mm |
Schedule | SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS |
Thickness | 0.3mm – 50 mm |
Type | Seamless / ERW / Welded/ Fabricated |
Form | Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, "U" Shape, Pan Cake Coils, Hydraulic Tubes |
Length | Single Random, Double Random & Cut Length |
End | Plain End, Beveled End, Treaded |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Ti |
321 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.03 max | 17 – 19 | 3 – 4 | 9 – 12 | 0.10 max | 5xC min 0.60% max |
Stainless Steel 321 Pipes Weight Chart
NPS | Outside Diameter | Wall Thickness | Weight | Weight | |||
in | mm | in | mm | Sched | kg/Mtr | Lb/ft | |
1/2″ | 0.840 | 21 | 0.109 | 2.769 | 40 STD | 1.268 | 0.851 |
0.147 | 3.734 | 80 STD | 1.621 | 1.088 | |||
3/4″ | 1.050 | 27 | 0.113 | 2.870 | 40 STD | 1.684 | 1.131 |
0.154 | 3.912 | 80 STD | 2.195 | 1.474 | |||
1″ | 1.315 | 33 | 0.133 | 3.378 | 40 STD | 2.501 | 1.679 |
0.179 | 4.547 | 80 STD | 3.325 | 2.172 | |||
1 1/4″ | 1.660 | 42 | 0.140 | 3.556 | 40 STD | 3.385 | 2.273 |
0.191 | 4.851 | 80 STD | 4.464 | 2.997 | |||
1 1/2″ | 1.900 | 48 | 0.145 | 3.683 | 40 STD | 4.048 | 2.718 |
0.200 | 5.080 | 80 STD | 5.409 | 3.361 | |||
2″ | 2.375 | 60 | 0.154 | 3.912 | 40 STD | 5.441 | 3.653 |
0.218 | 5.537 | 80 STD | 7.480 | 5.022 | |||
2 1/2″ | 2.875 | 73 | 0.203 | 5.516 | 40 STD | 8.629 | 5.793 |
0.276 | 7.010 | 80 STD | 11.411 | 7.661 | |||
3″ | 3.500 | 89 | 0.216 | 5.486 | 40 STD | 11.284 | 7.576 |
0.300 | 7.620 | 80 STD | 15.272 | 10.253 | |||
4″ | 4.500 | 114 | 0.237 | 6.020 | 16.073 | 10.790 | |
0.337 | 8.560 | 22.318 | 14.983 | ||||
6″ | 6.625 | 168 | 0.188 | 4.775 | 19.252 | 12.924 | |
0.203 | 5.516 | 20.739 | 13.923 | ||||
0.219 | 5.563 | 22.318 | 14.983 | ||||
0.250 | 6.350 | 25.354 | 17.021 | ||||
0.280 | 7.112 | 40 STD | 58.263 | 18.974 | |||
0.312 | 7.925 | 31.334 | 21.036 | ||||
0.375 | 9.525 | 37.285 | 25.031 | ||||
0.432 | 10.973 | 80 XHY | 42.561 | 28.573 | |||
0.500 | 12.700 | 48.719 | 32.708 | ||||
8″ | 8.625 | 219 | 0.188 | 4.775 | 25.233 | 16.940 | |
0.203 | 5.156 | 27.198 | 18.259 | ||||
0.219 | 5.563 | 29.286 | 19.661 | ||||
0.250 | 6.350 | 20 | 33.308 | 22.361 | |||
0.277 | 7.036 | 30 | 36.786 | 24.696 | |||
0.322 | 8.179 | 40 | 42.352 | 28.554 | |||
0.375 | 9.525 | 49.216 | 33.041 | ||||
0.406 | 10.312 | 60 | 53.085 | 35.638 | |||
0.500 | 12.700 | 80 XHY | 64.627 | 43.388 | |||
10″ | 10.750 | 273 | 0.188 | 4.775 | 31.588 | 21.207 | |
0.219 | 5.563 | 36.689 | 24.631 | ||||
0.250 | 6.350 | 20 | 41.759 | 28.035 | |||
0.307 | 7.798 | 30 | 51.002 | 34.240 | |||
0.344 | 8.738 | 56.946 | 38.231 | ||||
0.365 | 9.271 | 40 STD | 63.301 | 40.483 | |||
0.438 | 11.125 | 71.852 | 48.238 | ||||
0.500 | 12.700 | 60 XHY | 81.530 | 54.735 | |||
0.594 | 15.088 | 80 | 95.969 | 64.429 | |||
12″ | 12.750 | 324 | 0.188 | 4.775 | 37.570 | 25.222 | |
0.219 | 5.563 | 43.657 | 29.309 | ||||
0.250 | 6.350 | 49.713 | 33.375 | ||||
0.281 | 7.137 | 55.739 | 37.420 | ||||
0.312 | 7.925 | 61.735 | 41.445 | ||||
0.375 | 9.525 | 73.824 | 49.562 | ||||
0.406 | 10.312 | 79.727 | 53.525 | ||||
0.500 | 12.700 | 97.438 | 65.415 | ||||
0.562 | 14.275 | 108.966 | 73.154 | ||||
14″ | 14.000 | 356 | 0.188 | 4.775 | 41.308 | 27.732 | |
0.219 | 5.563 | 48.012 | 32.233 | ||||
0.250 | 6.350 | 20 | 54.685 | 36.713 | |||
0.281 | 7.137 | 61.327 | 41.172 | ||||
0.312 | 7.925 | 67.939 | 45.611 | ||||
0.375 | 9.525 | STD | 81.281 | 54.568 | |||
0.438 | 11.125 | 40 | 94.498 | 63.441 | |||
0.500 | 12.700 | XHY | 107.381 | 72.090 | |||
0.625 | 15.875 | 132.983 | 89.278 | ||||
16” | 16.000 | 406 | 0.188 | 4.775 | 47.290 | 21.748 | |
0.219 | 5.563 | 54.980 | 36.910 | ||||
0.250 | 6.350 | 10 | 62.639 | 42.053 | |||
0.281 | 7.137 | 70.268 | 47.174 | ||||
0.312 | 7.925 | 20 | 77.866 | 52.275 | |||
0.344 | 8.738 | 85.677 | 57.519 | ||||
0.375 | 9.525 |
30 STD |
93.213 | 62.578 | |||
0.438 | 11.125 | 108.433 | 72.797 | ||||
0.500 | 12.700 |
40 XHY |
123.289 | 82.770 | |||
18″ | 18.000 | 457 | 0.219 | 5.563 | 61.948 | 41.588 | |
0.250 | 6.350 | 70.593 | 47.393 | ||||
0.281 | 7.137 | 79.208 | 53.176 | ||||
0.312 | 7.925 | 20 | 87.792 | 58.939 | |||
0.375 | 9.525 | STD | 105.144 | 70.588 | |||
0.438 | 11.125 | 30 | 122.369 | 82.152 | |||
0.500 | 12.700 | XHY | 139.198 | 93.450 | |||
0.562 | 14.275 | 40 | 155.904 | 104.666 | |||
0.625 | 15.875 | 172.754 | 115.978 | ||||
20″ | 20.000 | 508 | 0.250 | 6.350 | 78.547 | 52.733 | |
0.282 | 7.163 | 88.458 | 59.386 | ||||
0.312 | 7.925 | 97.719 | 65.604 | ||||
0.375 | 9.525 | 20 STD | 117.075 | 78.598 | |||
0.438 | 11.125 | 136.305 | 91.508 | ||||
0.500 | 12.700 | 30 XHY | 155.106 | 104.130 | |||
0.594 | 15.088 | 40 | 183.378 | 123.110 | |||
0.625 | 15.875 | 192.640 | 129.328 | ||||
0.688 | 17.475 | 211.368 | 141.901 | ||||
24″ | 24.000 | 610 | 0.250 | 6.350 | 94.456 | 63.413 | |
0.281 | 7.137 | 106.029 | 71.183 | ||||
0.312 | 7.925 | 117.573 | 18.932 | ||||
0.375 | 9.525 | 20 STD | 140.938 | 64.618 | |||
0.438 | 11.125 | 164.176 | 110.219 | ||||
0.500 | 12.700 | XHY | 186.923 | 125.490 | |||
0.625 | 15.875 | 232.410 | 156.028 | ||||
0.688 | 17.475 | 40 | 255.148 | 171.293 | |||
0.750 | 19.050 | 277.401 | 186.233 | ||||
30″ | 30.000 | 762 | 0.250 | 6.350 | 118.318 | 79.433 | |
0.281 | 7.137 | 132.851 | 89.189 | ||||
0.312 | 7.925 | 10 | 147.353 | 98.925 | |||
0.375 | 9.525 | STD | 176.731 | 118.648 | |||
0.438 | 11.125 | 205.983 | 138.286 | ||||
0.500 | 12.700 | 20 XHY | 234.647 | 157.530 | |||
0.625 | 15.875 | 30 | 292.066 | 196.078 | |||
0.688 | 17.475 | 320.817 | 215.380 | ||||
0.750 | 19.050 | 348.988 | 234.293 | ||||
36″ | 36.000 | 914 | 0.250 | 6.350 | 142.180 | 95.453 | |
0.281 | 7.137 | 159.672 | 107.196 | ||||
0.312 | 7.925 | 10 | 177.133 | 118.918 | |||
0.375 | 9.525 | STD | 215.525 | 142.678 | |||
0.438 | 11.125 | 247.790 | 166.353 | ||||
0.500 | 12.700 | 20 XHY | 282.372 | 198.570 | |||
0.625 | 15.875 | 351.723 | 236.128 | ||||
0.688 |
17.475 | 386.487 | 259.467 | ||||
0.750 |
19.050 | 420.576 | 282.353 | ||||
42″ | 42.000 | 1067 | 0.312 | 7.925 | 206.914 | 138.911 | |
0.375 | 9.525 | STD | 248.319 | 166.708 | |||
0.500 | 12.700 | XHY | 33.097 | 221.610 | |||
0.750 | 19.050 | 492.163 | 330.413 | ||||
48″ | 48.000 | 1219 | 0.375 | 9.525 | STD | 284.112 | 190.738 |
0.438 | 11.125 | 331.404 | 222.487 | ||||
0.500 | 12.700 | XHY | 377.822 | 253.650 | |||
0.750 | 19.050 | 563.750 | 378.473 | ||||
0.875 | 22.225 | 655.969 | 440.383 |
Imperial Dimensions of Stainless Steel 321 Pipes Sizes
Pipe OD mm |
Pipe WT mm |
in. | Sch | Kg/m |
---|---|---|---|---|
13.72 | 1.65 | 1/4 | 10S | 0.50 |
13.72 | 2.24 | 1/4 | 40S | 0.64 |
13.72 | 3.02 | 1/4 | 80S | 0.81 |
17.15 | 1.65 | 3/8 | 10S | 0.64 |
17.15 | 2.31 | 3/8 | 40S | 0.86 |
17.15 | 3.20 | 3/8 | 80S | 1.12 |
21.34 | 2.11 | 1/2 | 10S | 1.02 |
21.34 | 2.77 | 1/2 | 40S | 1.29 |
21.34 | 3.73 | 1/2 | 80S | 1.65 |
26.67 | 2.11 | 3/4 | 10S | 1.30 |
26.67 | 2.87 | 3/4 | 40S | 1.71 |
26.67 | 3.91 | 3/4 | 80S | 2.23 |
33.40 | 2.77 | 1 | 10S | 2.13 |
33.40 | 3.38 | 1 | 40S | 2.54 |
33.40 | 4.55 | 1 | 80S | 3.29 |
33.40 | 6.352) | 1 | 160 | 4.30 |
42.16 | 2.77 | 1¼ | 10S | 2.73 |
42.16 | 3.56 | 1¼ | 40S | 3.44 |
42.16 | 4.85 | 1¼ | 80S | 4.53 |
42.16 | 6.352) | 1¼ | 160 | 5.69 |
48.26 | 2.77 | 1½ | 10S | 3.16 |
48.26 | 3.68 | 1½ | 40S | 4.11 |
48.26 | 5.08 | 1½ | 80S | 5.49 |
60.33 | 2.77 | 2 | 10S | 3.99 |
60.33 | 3.91 | 2 | 40S | 5.52 |
60.33 | 5.54 | 2 | 80S | 7.60 |
60.33 | 8.742) | 2 | 160 | 11.29 |
73.03 | 3.05 | 2½ | 10S | 5.35 |
73.03 | 5.16 | 2½ | 40S | 8.77 |
73.03 | 7.01 | 2½ | 80S | 11.59 |
88.90 | 3.05 | 3 | 10S | 6.56 |
88.90 | 5.49 | 3 | 40S | 11.47 |
88.90 | 7.62 | 3 | 80S | 15.51 |
88.90 | 11.132) | 3 | 160 | 21.67 |
101.60 | 3.05 | 3½ | 10S | 7.53 |
101.60 | 5.74 | 3½ | 40S | 13.78 |
101.60 | 8.08 | 3½ | 80S | 18.92 |
114.30 | 3.05 | 4 | 10S | 8.50 |
114.30 | 6.02 | 4 | 40S | 16.32 |
114.30 | 8.56 | 4 | 80S | 22.67 |
114.30 | 13.492) | 4 | 160 | 34.05 |
141.30 | 6.55 | 5 | 40S | 22.10 |
141.30 | 9.53 | 5 | 80S | 31.44 |
141.30 | 15.882) | 5 | 160 | 49.87 |
168.28 | 3.4 | 6 | 10S | 14.04 |
168.28 | 7.11 | 6 | 40S | 28.69 |
168.28 | 10.97 | 6 | 80S | 43.21 |
168.28 | 14.27 | 6 | 120 | 54.75 |
168.28 | 18.262) | 6 | 160 | 68.59 |
219.08 | 8.18 | 8 | 40S | 43.20 |
219.08 | 12.7 | 8 | 80S | 65.63 |
219.08 | 18.23 | 8 | 120 | 91.30 |
219.08 | 23.012) | 8 | 160 | 112.97 |
Pipe O.D. (In.) |
Wall Thickness Of Pipe (Inches) | |||||||
---|---|---|---|---|---|---|---|---|
.028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
Working Pressure (Psig) | ||||||||
1/8 | 7900 | 10100 | ||||||
1/4 | 3700 | 4800 | 7000 | 9500 | ||||
5/16 | 3700 | 5400 | 7300 | |||||
3/8 | 3100 | 4400 | 6100 | |||||
1/2 | 2300 | 3200 | 4400 | |||||
3/4 | 2200 | 3000 | 4000 | 4600 | ||||
1 | 2200 | 2900 | 3400 | 3900 | 4300 |
Types | Out diameter | Wall thickness | Length |
---|---|---|---|
NB Sizes (in stock) | 1/8” ~ 8” | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Upto 6 Meters |
SS 321 Seamless Pipe (Custom Sizes) | 5.0mm ~ 203.2mm | As per requirement | Upto 6 Meters |
SS 321 Welded Pipe (in Stock + Custom Sizes) | 5.0mm ~ 1219.2mm | 1.0 ~ 15.0 mm | Upto 6 Meters |
These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.
We ship our stainless steel metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. We pack our goods in numerous ways based on the products. We pack our products in multiple ways.
To specify the various physical and mechanical properties of the finished product, various tests, both destructive and nondestructive, are performed. Metallurgical, hardness, hardenability, tension, ductility, compression, fatigue, impact, wear, corrosion, creep, machinability, radiography, magnetic particle, ultrasonic, and eddy current are some of the major tests that are performed by quality control personnel. Metallurgical testing is used to determine the quality of steel by analyzing the microstructure of a sample under a microscope. A cross section of a sample is first highly polished and then examined at a magnification from 100-500 diameters. The microstructure of steel consists of grains of different compositions and sizes.
