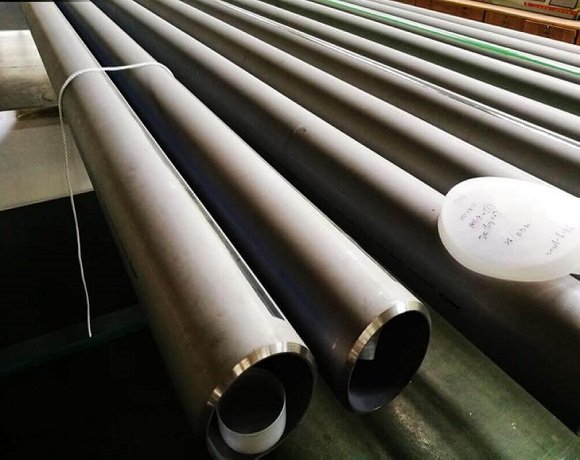

Silicon Steels is a renowned supplier of the Duplex UNS S31803 ERW Pipes as well as a manufacturer. ASTM A790 Duplex 2205 Pipe, aerated ferrite steel, can be used in corrosive conditions and can withstand localized corrosion such as stress corrosion cracking and tearing. Due to its chemical composition and characteristics, this stainless steel can withstand the high stress, but if you use the regular stainless steel instead, it will fail. For water treatment modules, upstream manufacture of high chloride gas, oil, paper and pulp processing, etc.
Duplex 2205 EFW Pipe consists of a steady ferrite step surrounded by austenite plates. Our Duplex 2205 EFW tubes are about twice as strong as regular austenitic stainless steel grades. These Duplex S31803 ERW tubes are the most commonly used duplex grades and due to defects, should not be used in temperatures above 300 degrees C. Thanks to our policy of maintaining a high level of stock over a variety of sizes, we can typically ship our Duplex 2205 ERW Pipes to global destinations by sea or air frequency with immediate delivery. The Duplex 2205 ERW Tubes are often exposed for a longer period of time to embroideries in the 370 degree C and 540 Degree C scales. The Duplex 2205 Pipes are a 50/50 austenite and ferrite stainless steel with an output power twice the value of traditional Austin stainless steel. Also Super Duplex S32750 ERW pipes have high corrosion resistance in contrast to massive quantities of chromium using other steels.
Our Duplex Steel 2205 ERW Pipes have high strength and toughness in effect in combination with superior pitting and crevice corrosion. Such corrosion-countering pipes are used to plant biofuels, pressurized vessels and bleaching devices. Our seamless tubes are highly weldable and hardy by the cold work of our ASTM A789 Duplex Steel UNS S32205 Pipe, They are slightly difficult to machine.
Specifications | ASTM A790 / ASME SA790 |
Sizes | 8" NB to 24" NB |
Wall Thickness | 0.5 to 150mm Thick |
Schedule | SCH 5S, 10S,10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS |
Length | Single Random, Double Random & Required Length |
Form | Round, Square, Rectangular, Hydraulic Pipes |
Type | Electric Resistance Welded |
End | Plain end, Bevelled end |
Length | Single Random, Double Random & Cut Length |
![]() |
|
|
|
![]() |
|
|
|
![]() |
|
|
|
![]() |
|
|
|
![]() |
|
|
|
![]() |
|
|
|
![]() |
|
|
|
![]() |
|
|
|
![]() |
|
|
|
STANDARD | UNS | WERKSTOFF NR. |
Duplex 2205/ S31803 | S31803 | 1.4462 |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
Duplex Steel S31803 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22 – 23 | 3 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
Duplex Steel S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21 – 23 | 2.50 - 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
Duplex Steel 2205 ERW Pipes Weight Chart
NPS | Outside Diameter | Wall Thickness | Weight | Weight | |||
in | mm | in | mm | Sched | kg/Mtr | Lb/ft | |
1/2″ | 0.840 | 21 | 0.109 | 2.769 | 40 STD | 1.268 | 0.851 |
0.147 | 3.734 | 80 STD | 1.621 | 1.088 | |||
3/4″ | 1.050 | 27 | 0.113 | 2.870 | 40 STD | 1.684 | 1.131 |
0.154 | 3.912 | 80 STD | 2.195 | 1.474 | |||
1″ | 1.315 | 33 | 0.133 | 3.378 | 40 STD | 2.501 | 1.679 |
0.179 | 4.547 | 80 STD | 3.325 | 2.172 | |||
1 1/4″ | 1.660 | 42 | 0.140 | 3.556 | 40 STD | 3.385 | 2.273 |
0.191 | 4.851 | 80 STD | 4.464 | 2.997 | |||
1 1/2″ | 1.900 | 48 | 0.145 | 3.683 | 40 STD | 4.048 | 2.718 |
0.200 | 5.080 | 80 STD | 5.409 | 3.361 | |||
2″ | 2.375 | 60 | 0.154 | 3.912 | 40 STD | 5.441 | 3.653 |
0.218 | 5.537 | 80 STD | 7.480 | 5.022 | |||
2 1/2″ | 2.875 | 73 | 0.203 | 5.516 | 40 STD | 8.629 | 5.793 |
0.276 | 7.010 | 80 STD | 11.411 | 7.661 | |||
3″ | 3.500 | 89 | 0.216 | 5.486 | 40 STD | 11.284 | 7.576 |
0.300 | 7.620 | 80 STD | 15.272 | 10.253 | |||
4″ | 4.500 | 114 | 0.237 | 6.020 | 16.073 | 10.790 | |
0.337 | 8.560 | 22.318 | 14.983 | ||||
6″ | 6.625 | 168 | 0.188 | 4.775 | 19.252 | 12.924 | |
0.203 | 5.516 | 20.739 | 13.923 | ||||
0.219 | 5.563 | 22.318 | 14.983 | ||||
0.250 | 6.350 | 25.354 | 17.021 | ||||
0.280 | 7.112 | 40 STD | 58.263 | 18.974 | |||
0.312 | 7.925 | 31.334 | 21.036 | ||||
0.375 | 9.525 | 37.285 | 25.031 | ||||
0.432 | 10.973 | 80 XHY | 42.561 | 28.573 | |||
0.500 | 12.700 | 48.719 | 32.708 | ||||
8″ | 8.625 | 219 | 0.188 | 4.775 | 25.233 | 16.940 | |
0.203 | 5.156 | 27.198 | 18.259 | ||||
0.219 | 5.563 | 29.286 | 19.661 | ||||
0.250 | 6.350 | 20 | 33.308 | 22.361 | |||
0.277 | 7.036 | 30 | 36.786 | 24.696 | |||
0.322 | 8.179 | 40 | 42.352 | 28.554 | |||
0.375 | 9.525 | 49.216 | 33.041 | ||||
0.406 | 10.312 | 60 | 53.085 | 35.638 | |||
0.500 | 12.700 | 80 XHY | 64.627 | 43.388 | |||
10″ | 10.750 | 273 | 0.188 | 4.775 | 31.588 | 21.207 | |
0.219 | 5.563 | 36.689 | 24.631 | ||||
0.250 | 6.350 | 20 | 41.759 | 28.035 | |||
0.307 | 7.798 | 30 | 51.002 | 34.240 | |||
0.344 | 8.738 | 56.946 | 38.231 | ||||
0.365 | 9.271 | 40 STD | 63.301 | 40.483 | |||
0.438 | 11.125 | 71.852 | 48.238 | ||||
0.500 | 12.700 | 60 XHY | 81.530 | 54.735 | |||
0.594 | 15.088 | 80 | 95.969 | 64.429 | |||
12″ | 12.750 | 324 | 0.188 | 4.775 | 37.570 | 25.222 | |
0.219 | 5.563 | 43.657 | 29.309 | ||||
0.250 | 6.350 | 49.713 | 33.375 | ||||
0.281 | 7.137 | 55.739 | 37.420 | ||||
0.312 | 7.925 | 61.735 | 41.445 | ||||
0.375 | 9.525 | 73.824 | 49.562 | ||||
0.406 | 10.312 | 79.727 | 53.525 | ||||
0.500 | 12.700 | 97.438 | 65.415 | ||||
0.562 | 14.275 | 108.966 | 73.154 | ||||
14″ | 14.000 | 356 | 0.188 | 4.775 | 41.308 | 27.732 | |
0.219 | 5.563 | 48.012 | 32.233 | ||||
0.250 | 6.350 | 20 | 54.685 | 36.713 | |||
0.281 | 7.137 | 61.327 | 41.172 | ||||
0.312 | 7.925 | 67.939 | 45.611 | ||||
0.375 | 9.525 | STD | 81.281 | 54.568 | |||
0.438 | 11.125 | 40 | 94.498 | 63.441 | |||
0.500 | 12.700 | XHY | 107.381 | 72.090 | |||
0.625 | 15.875 | 132.983 | 89.278 | ||||
16” | 16.000 | 406 | 0.188 | 4.775 | 47.290 | 21.748 | |
0.219 | 5.563 | 54.980 | 36.910 | ||||
0.250 | 6.350 | 10 | 62.639 | 42.053 | |||
0.281 | 7.137 | 70.268 | 47.174 | ||||
0.312 | 7.925 | 20 | 77.866 | 52.275 | |||
0.344 | 8.738 | 85.677 | 57.519 | ||||
0.375 | 9.525 |
30 STD |
93.213 | 62.578 | |||
0.438 | 11.125 | 108.433 | 72.797 | ||||
0.500 | 12.700 |
40 XHY |
123.289 | 82.770 | |||
18″ | 18.000 | 457 | 0.219 | 5.563 | 61.948 | 41.588 | |
0.250 | 6.350 | 70.593 | 47.393 | ||||
0.281 | 7.137 | 79.208 | 53.176 | ||||
0.312 | 7.925 | 20 | 87.792 | 58.939 | |||
0.375 | 9.525 | STD | 105.144 | 70.588 | |||
0.438 | 11.125 | 30 | 122.369 | 82.152 | |||
0.500 | 12.700 | XHY | 139.198 | 93.450 | |||
0.562 | 14.275 | 40 | 155.904 | 104.666 | |||
0.625 | 15.875 | 172.754 | 115.978 | ||||
20″ | 20.000 | 508 | 0.250 | 6.350 | 78.547 | 52.733 | |
0.282 | 7.163 | 88.458 | 59.386 | ||||
0.312 | 7.925 | 97.719 | 65.604 | ||||
0.375 | 9.525 | 20 STD | 117.075 | 78.598 | |||
0.438 | 11.125 | 136.305 | 91.508 | ||||
0.500 | 12.700 | 30 XHY | 155.106 | 104.130 | |||
0.594 | 15.088 | 40 | 183.378 | 123.110 | |||
0.625 | 15.875 | 192.640 | 129.328 | ||||
0.688 | 17.475 | 211.368 | 141.901 | ||||
24″ | 24.000 | 610 | 0.250 | 6.350 | 94.456 | 63.413 | |
0.281 | 7.137 | 106.029 | 71.183 | ||||
0.312 | 7.925 | 117.573 | 18.932 | ||||
0.375 | 9.525 | 20 STD | 140.938 | 64.618 | |||
0.438 | 11.125 | 164.176 | 110.219 | ||||
0.500 | 12.700 | XHY | 186.923 | 125.490 | |||
0.625 | 15.875 | 232.410 | 156.028 | ||||
0.688 | 17.475 | 40 | 255.148 | 171.293 | |||
0.750 | 19.050 | 277.401 | 186.233 | ||||
30″ | 30.000 | 762 | 0.250 | 6.350 | 118.318 | 79.433 | |
0.281 | 7.137 | 132.851 | 89.189 | ||||
0.312 | 7.925 | 10 | 147.353 | 98.925 | |||
0.375 | 9.525 | STD | 176.731 | 118.648 | |||
0.438 | 11.125 | 205.983 | 138.286 | ||||
0.500 | 12.700 | 20 XHY | 234.647 | 157.530 | |||
0.625 | 15.875 | 30 | 292.066 | 196.078 | |||
0.688 | 17.475 | 320.817 | 215.380 | ||||
0.750 | 19.050 | 348.988 | 234.293 | ||||
36″ | 36.000 | 914 | 0.250 | 6.350 | 142.180 | 95.453 | |
0.281 | 7.137 | 159.672 | 107.196 | ||||
0.312 | 7.925 | 10 | 177.133 | 118.918 | |||
0.375 | 9.525 | STD | 215.525 | 142.678 | |||
0.438 | 11.125 | 247.790 | 166.353 | ||||
0.500 | 12.700 | 20 XHY | 282.372 | 198.570 | |||
0.625 | 15.875 | 351.723 | 236.128 | ||||
0.688 |
17.475 | 386.487 | 259.467 | ||||
0.750 |
19.050 | 420.576 | 282.353 | ||||
42″ | 42.000 | 1067 | 0.312 | 7.925 | 206.914 | 138.911 | |
0.375 | 9.525 | STD | 248.319 | 166.708 | |||
0.500 | 12.700 | XHY | 33.097 | 221.610 | |||
0.750 | 19.050 | 492.163 | 330.413 | ||||
48″ | 48.000 | 1219 | 0.375 | 9.525 | STD | 284.112 | 190.738 |
0.438 | 11.125 | 331.404 | 222.487 | ||||
0.500 | 12.700 | XHY | 377.822 | 253.650 | |||
0.750 | 19.050 | 563.750 | 378.473 | ||||
0.875 | 22.225 | 655.969 | 440.383 |
Imperial Dimensions of Duplex Steel 2205 ERW Pipes Sizes
Pipe OD mm |
Pipe WT mm |
in. | Sch | Kg/m |
---|---|---|---|---|
13.72 | 1.65 | 1/4 | 10S | 0.50 |
13.72 | 2.24 | 1/4 | 40S | 0.64 |
13.72 | 3.02 | 1/4 | 80S | 0.81 |
17.15 | 1.65 | 3/8 | 10S | 0.64 |
17.15 | 2.31 | 3/8 | 40S | 0.86 |
17.15 | 3.20 | 3/8 | 80S | 1.12 |
21.34 | 2.11 | 1/2 | 10S | 1.02 |
21.34 | 2.77 | 1/2 | 40S | 1.29 |
21.34 | 3.73 | 1/2 | 80S | 1.65 |
26.67 | 2.11 | 3/4 | 10S | 1.30 |
26.67 | 2.87 | 3/4 | 40S | 1.71 |
26.67 | 3.91 | 3/4 | 80S | 2.23 |
33.40 | 2.77 | 1 | 10S | 2.13 |
33.40 | 3.38 | 1 | 40S | 2.54 |
33.40 | 4.55 | 1 | 80S | 3.29 |
33.40 | 6.352) | 1 | 160 | 4.30 |
42.16 | 2.77 | 1¼ | 10S | 2.73 |
42.16 | 3.56 | 1¼ | 40S | 3.44 |
42.16 | 4.85 | 1¼ | 80S | 4.53 |
42.16 | 6.352) | 1¼ | 160 | 5.69 |
48.26 | 2.77 | 1½ | 10S | 3.16 |
48.26 | 3.68 | 1½ | 40S | 4.11 |
48.26 | 5.08 | 1½ | 80S | 5.49 |
60.33 | 2.77 | 2 | 10S | 3.99 |
60.33 | 3.91 | 2 | 40S | 5.52 |
60.33 | 5.54 | 2 | 80S | 7.60 |
60.33 | 8.742) | 2 | 160 | 11.29 |
73.03 | 3.05 | 2½ | 10S | 5.35 |
73.03 | 5.16 | 2½ | 40S | 8.77 |
73.03 | 7.01 | 2½ | 80S | 11.59 |
88.90 | 3.05 | 3 | 10S | 6.56 |
88.90 | 5.49 | 3 | 40S | 11.47 |
88.90 | 7.62 | 3 | 80S | 15.51 |
88.90 | 11.132) | 3 | 160 | 21.67 |
101.60 | 3.05 | 3½ | 10S | 7.53 |
101.60 | 5.74 | 3½ | 40S | 13.78 |
101.60 | 8.08 | 3½ | 80S | 18.92 |
114.30 | 3.05 | 4 | 10S | 8.50 |
114.30 | 6.02 | 4 | 40S | 16.32 |
114.30 | 8.56 | 4 | 80S | 22.67 |
114.30 | 13.492) | 4 | 160 | 34.05 |
141.30 | 6.55 | 5 | 40S | 22.10 |
141.30 | 9.53 | 5 | 80S | 31.44 |
141.30 | 15.882) | 5 | 160 | 49.87 |
168.28 | 3.4 | 6 | 10S | 14.04 |
168.28 | 7.11 | 6 | 40S | 28.69 |
168.28 | 10.97 | 6 | 80S | 43.21 |
168.28 | 14.27 | 6 | 120 | 54.75 |
168.28 | 18.262) | 6 | 160 | 68.59 |
219.08 | 8.18 | 8 | 40S | 43.20 |
219.08 | 12.7 | 8 | 80S | 65.63 |
219.08 | 18.23 | 8 | 120 | 91.30 |
219.08 | 23.012) | 8 | 160 | 112.97 |
Pipe O.D. (In.) |
Wall Thickness Of Pipe (Inches) | |||||||
---|---|---|---|---|---|---|---|---|
.028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
Working Pressure (Psig) | ||||||||
1/8 | 7900 | 10100 | ||||||
1/4 | 3700 | 4800 | 7000 | 9500 | ||||
5/16 | 3700 | 5400 | 7300 | |||||
3/8 | 3100 | 4400 | 6100 | |||||
1/2 | 2300 | 3200 | 4400 | |||||
3/4 | 2200 | 3000 | 4000 | 4600 | ||||
1 | 2200 | 2900 | 3400 | 3900 | 4300 |
Types | Out diameter | Wall thickness | Length |
---|---|---|---|
NB Sizes (in stock) | 1/8” ~ 8” | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Upto 6 Meters |
Duplex 2205 ERW Pipe (Custom Sizes) | 5.0mm ~ 203.2mm | As per requirement | Upto 6 Meters |
Duplex 2205 Welded Pipe (in Stock + Custom Sizes) | 5.0mm ~ 1219.2mm | 1.0 ~ 15.0 mm | Upto 6 Meters |
These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.
We ship our stainless steel metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. We pack our goods in numerous ways based on the products. We pack our products in multiple ways.
To specify the various physical and mechanical properties of the finished product, various tests, both destructive and nondestructive, are performed. Metallurgical, hardness, hardenability, tension, ductility, compression, fatigue, impact, wear, corrosion, creep, machinability, radiography, magnetic particle, ultrasonic, and eddy current are some of the major tests that are performed by quality control personnel. Metallurgical testing is used to determine the quality of steel by analyzing the microstructure of a sample under a microscope. A cross section of a sample is first highly polished and then examined at a magnification from 100-500 diameters. The microstructure of steel consists of grains of different compositions and sizes.
